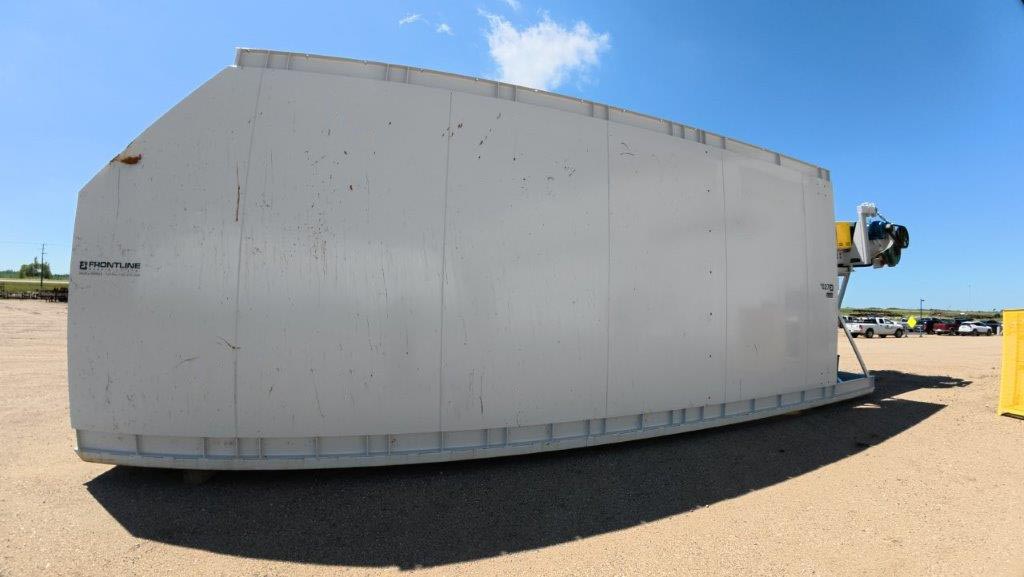

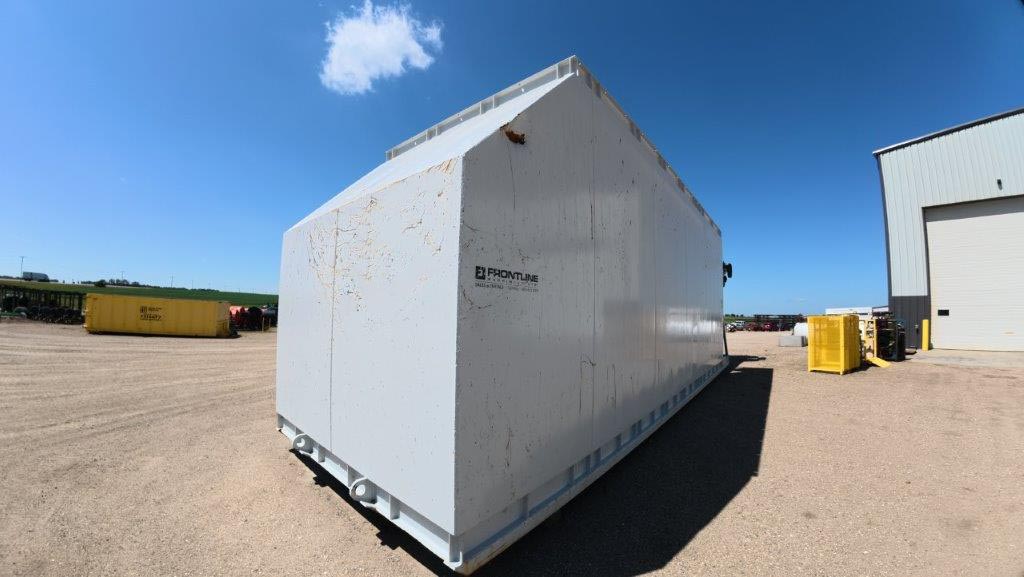

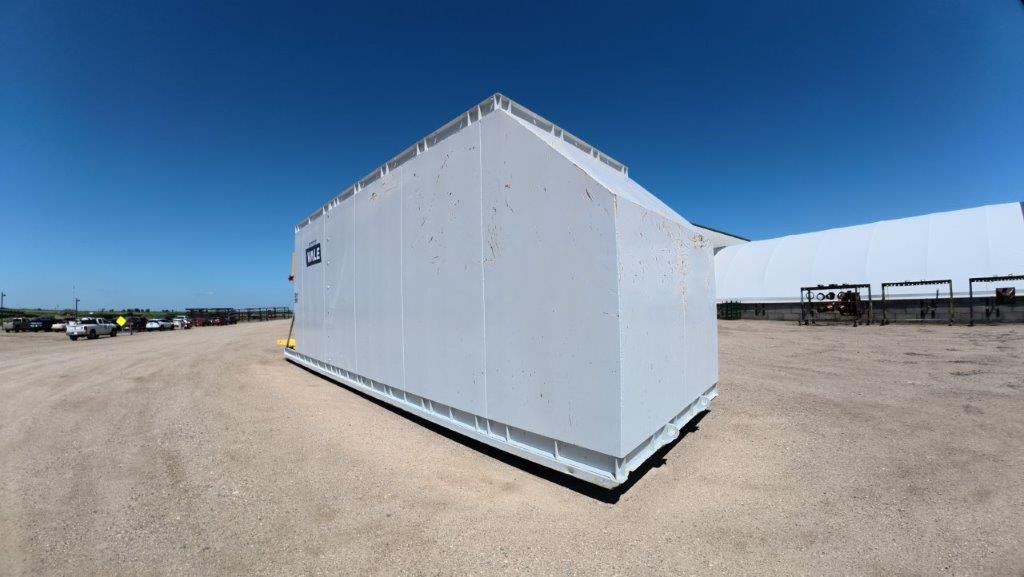

2024 Vale 4235DT Product Feeder (#1027-1)

Bulk product feeder, perfect for bulk loading aggregate materials for a smooth and consistent flow of materials for stockpiling, loading or further processing.

Optional Hydraulic Tipping Grizzly, can be added for screening large materials.

Capacity

• 42” belt at 85 fpm
• 900 tph based on 100 pcf material and 9’ discharge

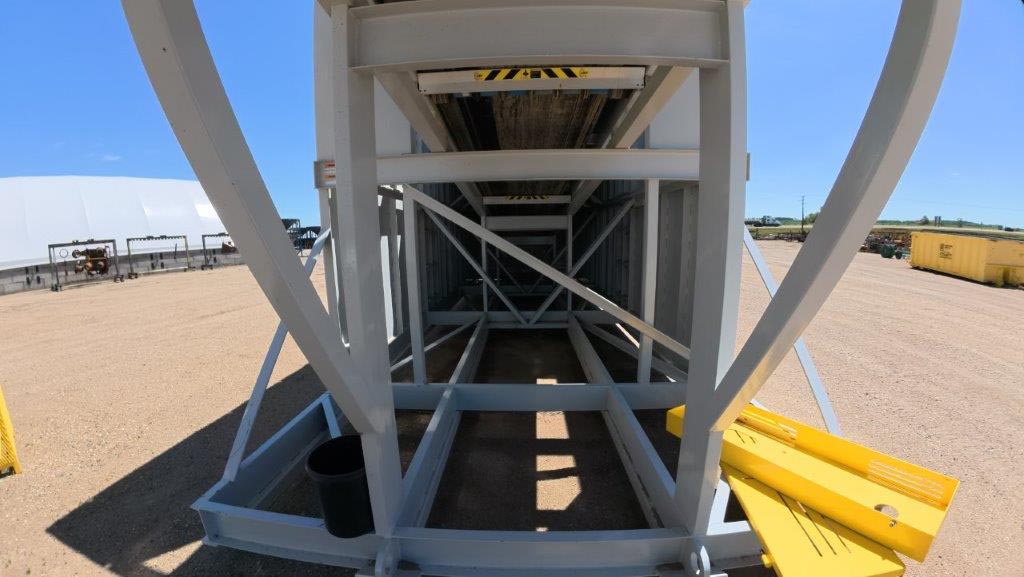

Load Zone

• 13 ft. fully enclosed area
  • 1/4″ plate with back bone supported construction
• Self-relieving

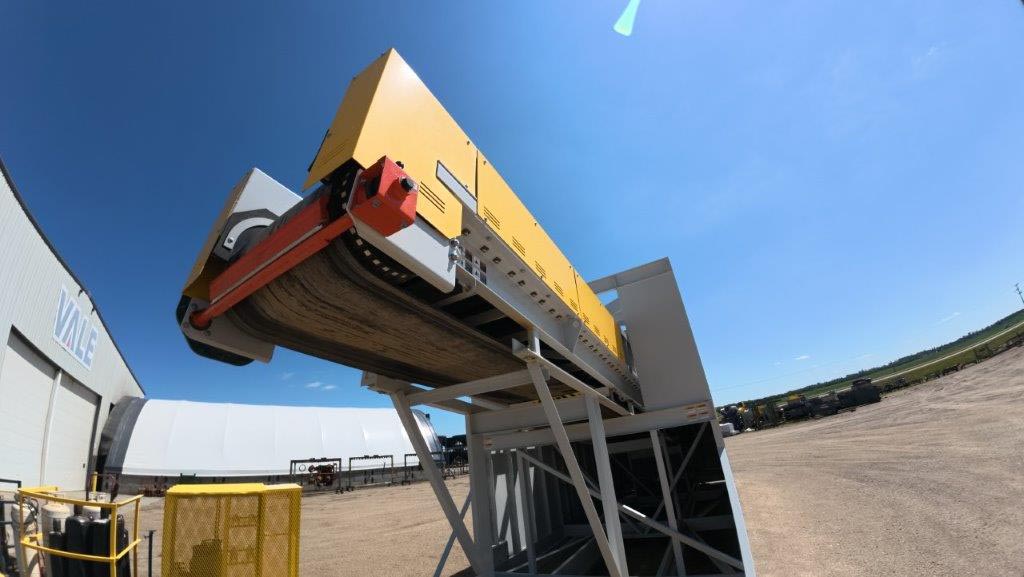

Feeder Conveyor Cartridge

• 42” belt 3Ply 600 PIW 3/8×3/32 D6 Abrasion Resistant belt, vulcanized

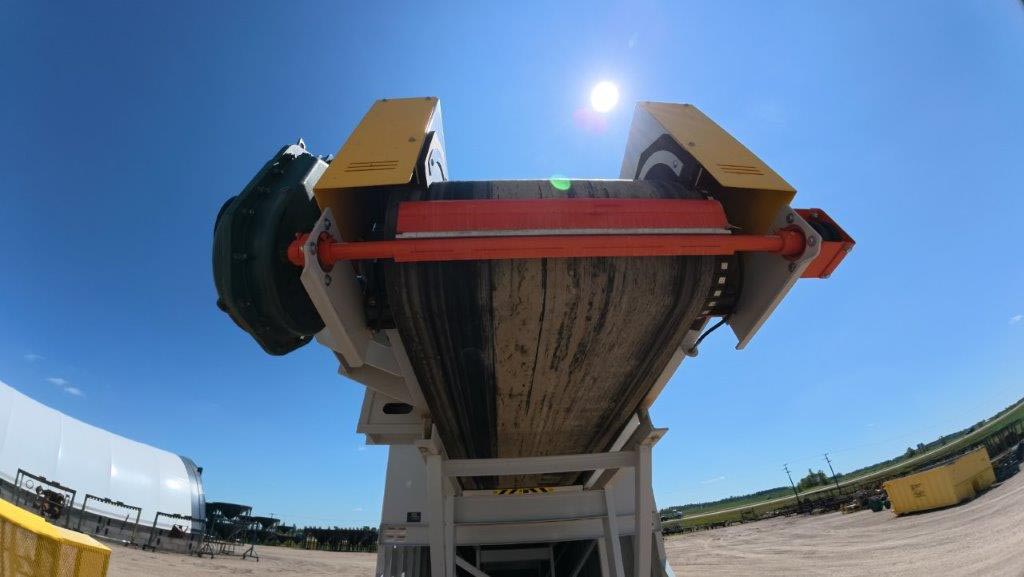

• 20” Head drum pulley, Ceramic lagged, 1045-415 shaft with 407 S2000 bearing units
• 18” Mine Duty Wing tail pulley with screw take-up, 1045-407 shaft with 315 S2000 bearing units, guarded
  • WEG 40 HP, 460V electric motor

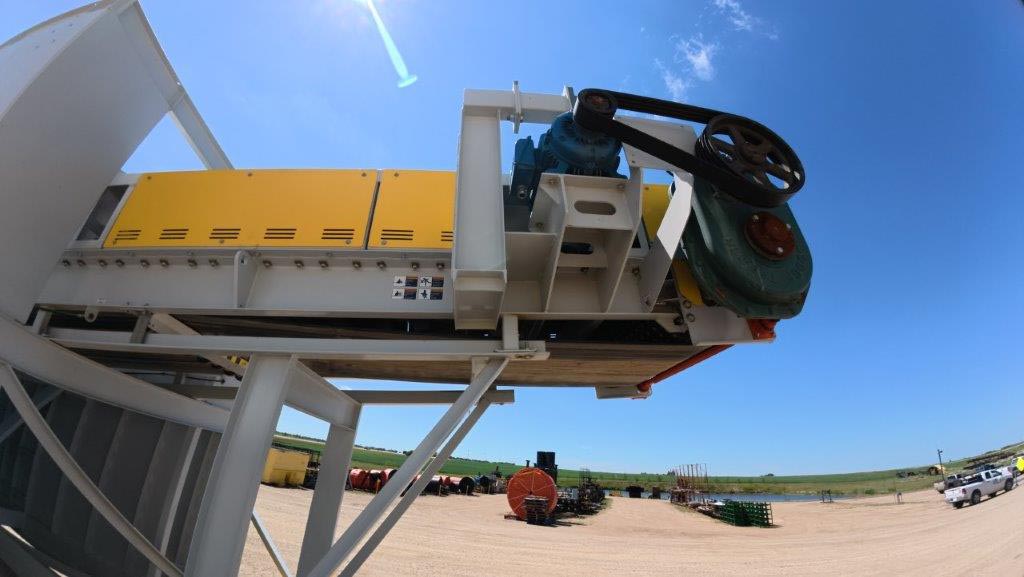

  • Dodge 9415 gearbox with motor sheave 6.55 inch and gearbox sheave 18.75 inch.
• LUFF CEMA C5 Live Shaft Impact Idlers
  • 12” spacing full length
  • 10’ Rubber disc return spacing
• Full length skirts
  • 3/8”” plate construction
• Canoe liners, 1.5”x7” with 45° top angle full length
• Martin belt scraper
• V-Plow 42” belt
• Full length trough guarding
• Head pulley shaft guards
• Return roll pinch guards
• Guarding removeable for belt replacement
