New equipment for sale

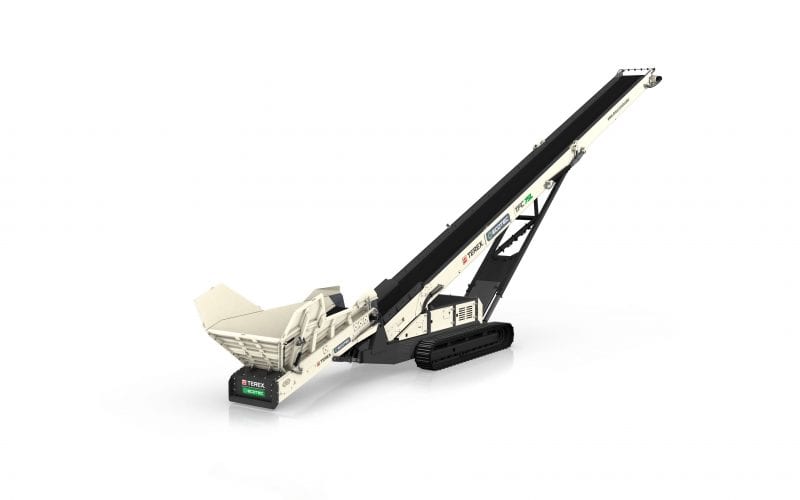

Ecotec TFC 75 Low Level Feeder Conveyor
Robust, versatile and high capacity low-level feeding stacking conveyor
Terex Ecotec’s TFC 75L Low-Level Feeder Conveyor allows the operator to directly discharge from wheel loaders and excavators at a significantly lower infeed height compared to standard hopper feeders. The unique hopper design allows for rear feeding which is an advantage when operating in inhibited areas.
Get More InfoApplication: Aggregate, Construction and Demolition, Soil, Mulch and Compost, Waste and Recycling, Wood Recycling and Forestry
Manufacturer: Ecotec
Configuration: Mobile (Tracked)
Model: TFC 75 Low Level Feeder Conveyor
New/Used: New
Performance Highlights
Performance Highlights
- Tier 4: Tier 4F / Stage IV – Caterpillar C4.4 – 4 cylinder diesel engine developing 82kW (110HP) @ 1800rpm
- Fuel tank volume: 325 litres
- Capacity up to 500 tph
- Max discharge height up to 8 m (26’3″”)
- Belt width 1,200 mm (47″”)
- Conveyor length 22.6 m (74′ 2″”)
Options
- Canvas dust covers on discharge conveyor
- Canvas dust covers complete with dust hood on discharge conveyor
- Twin drive discharge conveyor
- Full length side skirting along discharge conveyor
- High spec discharge conveyor head drum scraper
- Anti-roll back flaps
- Discharge belt upgraded to 3ply heavy duty belt
- Discharge conveyor drive drum upgraded to ceramic lagging
- Discharge conveyor underguard option length of mid section
- Dust suppression at discharge conveyor head drum
- Belt weigher option
- Overband magnet at feedboot of discharge conveyor
- Radio remote to start / stop feeder, raise / lower discharge conveyor
- Pull cord E-stop running length of discharge conveyor
- Radio remote to track machine
- Feedboot lined 6mm wearplate
- Manual adjusting jacking legs at tail side of feeder to adjust tail height
- Feed conveyor drive drum upgraded to ceramic lagging
- Hopper lined 6mm wearplate
- Hopper flares lined 6mm wearplate
- Mild steel liners bolted into hopper
Benefits
Unique hopper design
The unique hopper design on the TFC 75 low-level feeder stacker can accept rear material feed from an excavator, wheel loader, and grab crane.
Maintenance-friendly
Fully protected Caterpillar C4.4 4-cylinder power-unit provides easy ground access for service and maintenance.
Impressive stockpiling
Designed with a 22.6m (74’2″) length conveyor with a max discharge height of 9.8m (32’2″), the TFC 75 offers production up to 500 tph and massive stockpiling capabilities.
Custom options
The TFC 75 low-level feeder stacking conveyor comes with an extensive list of custom options for application versatility including overband magnets, dust covers, radio remotes, 3-ply belts, dust suppression, and much more.
Why Ecotec?
Vast product porfolio
Ecotec’s broad range of equipment allows for more targeted efficiency in niche operations. Behind an aggressive research and development strategy, Terex Ecotec now offers a full product portfolio that meets the needs of today’s professionals and will shape the industry for years to come. The Terex Ecotec product line has grown significantly and expanded production out of a new 105,000 square foot manufacturing facility Today their comprehensive product portfolio includes, Slow, Medium & High Speed Shredders, Trommel Screens, Recycling Screens, Waste Handlers, and conveyors.
Field support
Ecotec is your proven industry-leading partner for the design, service, and support of primary waste recycling, wood recycling, and composting equipment. They have dedicated sales and service staff for the Ecotec product range with a driving focus on providing customers the best support in and out of the field. Their world-class dealer distribution network provides the sales and aftermarket service demanded in the marketplace giving customers the support required to maximize production and minimize downtime.
Industry leader
Terex® Ecotec, part of the wider Terex Materials Processing group, is an industry leader in the design and manufacture of wood processing, biomass, and recycling equipment. The range of innovative machines available is robust yet user-friendly with a focus on throughput, efficiency, and serviceability. Their world-class range of mobile equipment that will shape the industry for years to come.
