Keestrack I4e Reversible Impact Crusher
Mobile horizontal reversible impact crusher combining secondary and tertiary crushing in one machine for the manufacturing of fines.
Introducing a groundbreaking mobile crushing solution, the newly developed Keestrack I4e tracked mounted reversible impact crusher is pioneering a unique concept in aggregate processing technology. Utilizing an innovative RIC (Reversible Impact Crusher) system, this machine can be used in secondary and tertiary crushing.
Design features include a variable sizing crushing chamber, a robust 1100 mm diameter rotor, and electronically monitored hydraulic gap adjustment, enabling it to accommodate feed sizes up to 250 mm while consistently producing high-quality end products as fine as 0/2 mm in a closed-circuit setup .
Combining secondary and tertiary crushing functionalities into one highly mobile solution, the Keestrack I4e is an excellent alternative to cone or vertical impact crushers, especially given its high production capacities ranging from 100 to 250 t/h, lower wear rates, superior end product quality (including grain shape), and significant energy savings, particularly in sand production (0/4 mm: approximately -30% compared to cone crushers and -30 to -40% compared to VSI impact crushers). These advantages are further enhanced by the electric ZERO drive concept, supported by a dedicated drop-off engine/gen-set consisting of a 447 kW diesel engine and 300 kVa generator.
Get More InfoApplication: Aggregate, Construction and Demolition
Manufacturer: Keestrack
Configuration: Mobile (Tracked)
Model: R3 Impact Crusher

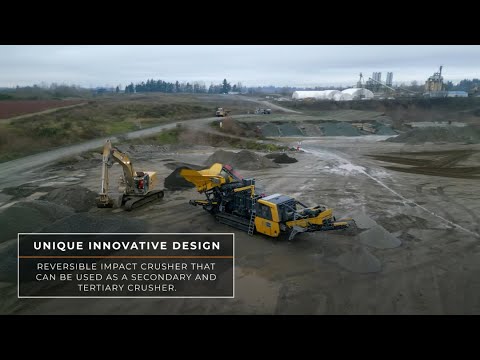

See the Keestrack I4e Reversible Impact Crusher in action!
The newly released Keestrack I4e mobile reversible impact crusher provides versatility in crushing applications, catering to both natural stone and recycling needs.
Performance Highlights
- Feed size up to 250 mm
- 8m³ hopper (10,5 yard³)
- Heavy duty plate apron feeder
- Reversible belt feeder with metal detector
- Foldable stockpile conveyor belt
- Reversible horizontal impact crusher inlet opening 250-450 (height adjustable) x 670 mm width
- Rotor diameter 1,100 mm (3’7″), rotor width 650 mm (2’2”)
- Drop off engine/gen set, e-drive: plug-in and plug-out
- Optional single deck after screen 3,100 x 1,400 mm (10’2″ x 4’8″), with closed circuit return conveyor
- Capacity up to 250 tonnes / hour
- 2-speed track drive
Benefits
Low Wear
The crusher is equipped with a reversible rotor that allows for the crushing bars to be flipped and used in both directions, extending the lifespan of the wear parts and optimizing the crushing efficiency.
Variable Crushing Chamber
With a large variable crushing chamber, the I4e can accommodate feed sizes up to 250 mm, providing flexibility in processing different materials. It consistently produces high-quality end products, with sizes as fine as 0/2 mm in closed circuit, meeting the demands of various applications
Combination of Secondary and Tertiary Crushing
The I4e combines secondary and tertiary crushing functionalities into one highly mobile solution, providing a cost-effective alternative to traditional mobile cone crushers or vertical impact crushers.
Energy Efficiency
The I4e offers significant energy savings compared to other crushing technologies, thanks to its advanced electric ZERO drive concept and drop-off engine/gen-set configuration, resulting in reduced fuel consumption and operating costs.
