Cone crusher for tough rock and ore and used for primary, secondary, tertiary, or quarternary crushing

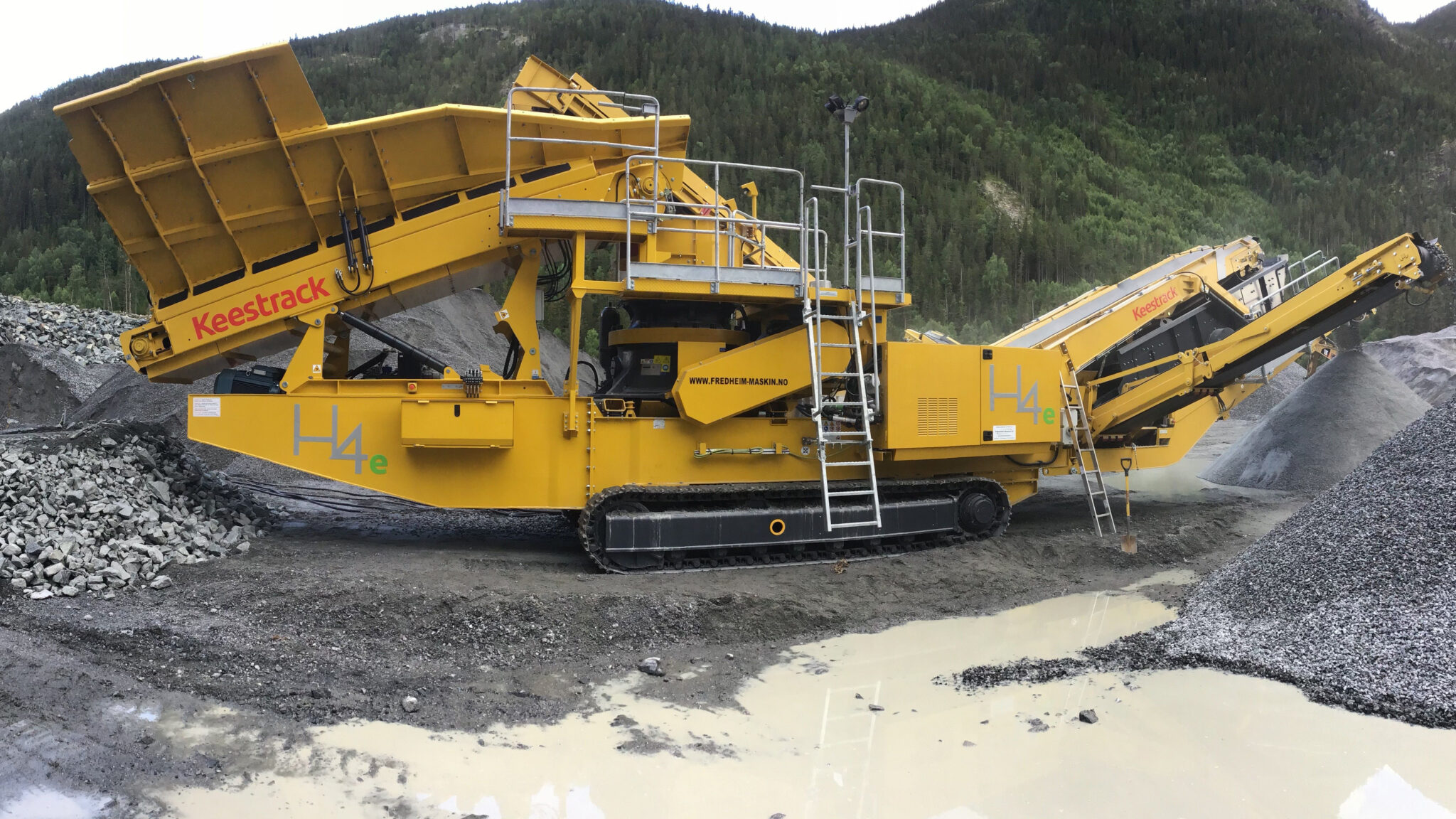

Keestrack H4 Cone Crusher

  • This field is for validation purposes and should be left unchanged.

The Keestrack H4 cone crusher’s innovative design combines 3 machines in a single pass, crushing and separating 4 different fractions at once. This allows owner operators to run one machine vs. 3 which results in reduced equipment and maintenance costs. Used in primary, secondary, tertiary or quarternary crushing, this machine is designed tackle the toughest rock and ore. This machines is designed with a 36” Sadvik hydrocone and can handle feed sizes up to 7” in size with a throughput of 250 tonnes per hour.

The first of its kind, the H4 track mounted cone crusher comes standard with a hybrid engine; a 345 kW/330 KVA diesel/generator module and 132 kW electric drive for the crusher and electrifying other machines such as a conveyor or screener. This design substantially reduces fuel consumption burning roughly 30 litres an hour. The Keestrack H4 is in a class on its own with advanced output capacity, production quality and reduced operational costs.

Performance Highlights

  • C.S.S (6 – 38 mm (2/10” – 1 5/10”))
  • Diesel / electric drive
  • Optional pre-screen (1,200 mm (4’) x 1,800 mm (6’)) *not available in the US
  • Optional 3-deck screen (1,500 x 3,600 mm (5’ x 12’))
  • Effective screen area 5.4 m² on each deck with return conveyor
  • 2 speed track drive
  • Other configurations available including different crushing chambers
  • Optional pre-screen
  • Metal detector
  • Pressurized cone to avoid overload
  • 3-deck screen with oversize return
  • Green power electric drive
  • Steel hydraulic
  • HB 450 steel hopper and wear plates
  • Removable engine / genset compartment

Key model attributes

Capacity

Up to 250 tph

Weight

35,000 kg

Feed Size

185 mm (7”)

Hopper Size

8 m3
