New equipment for sale

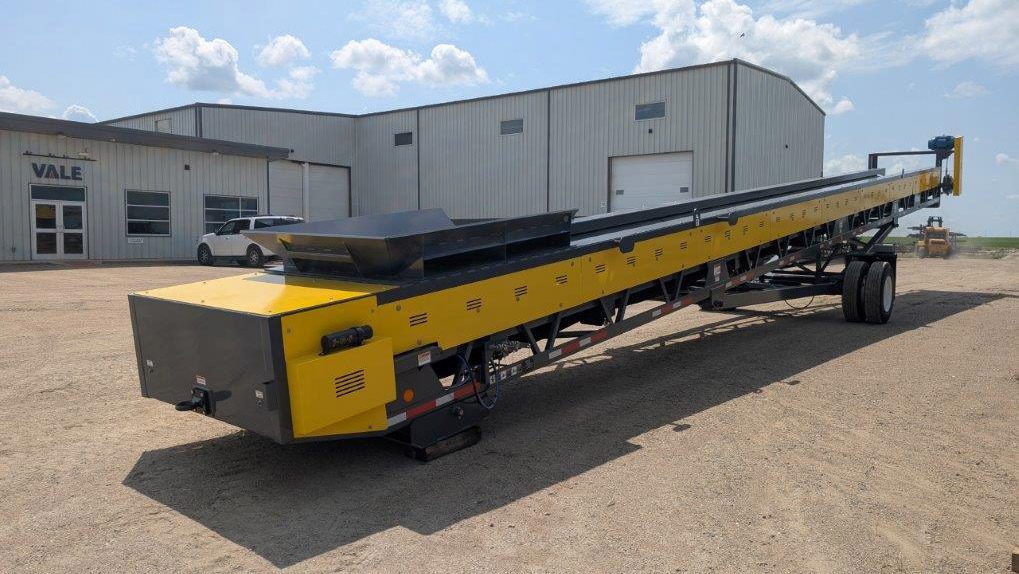

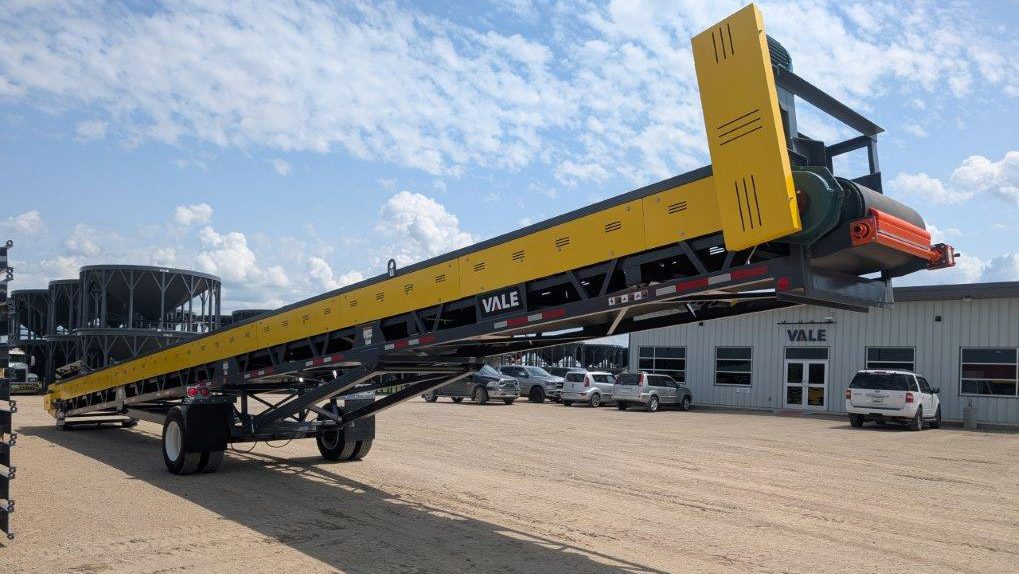

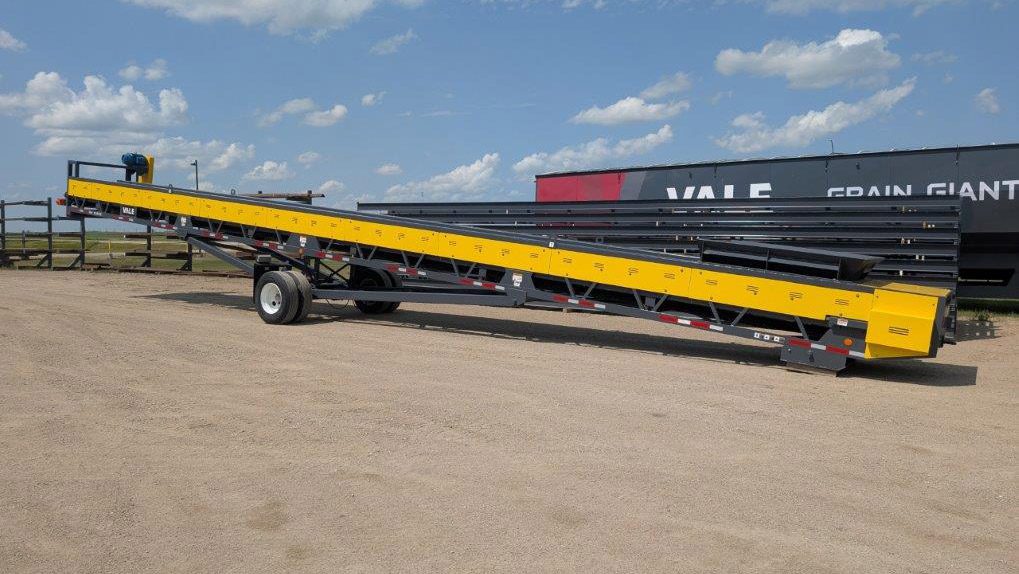

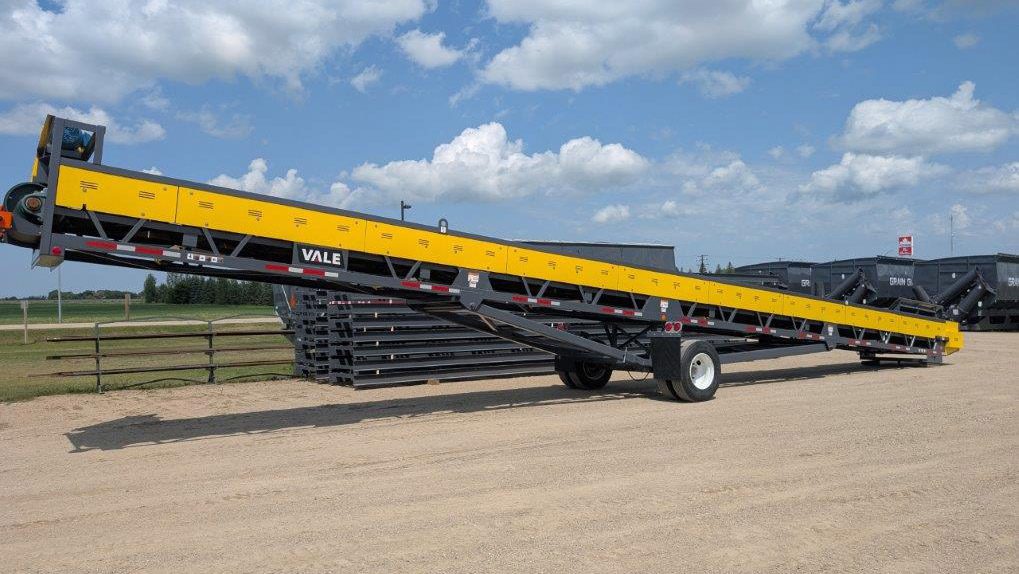

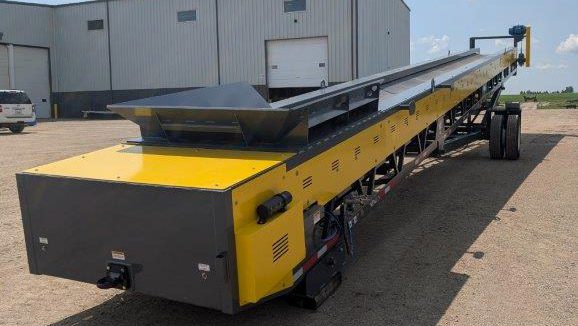

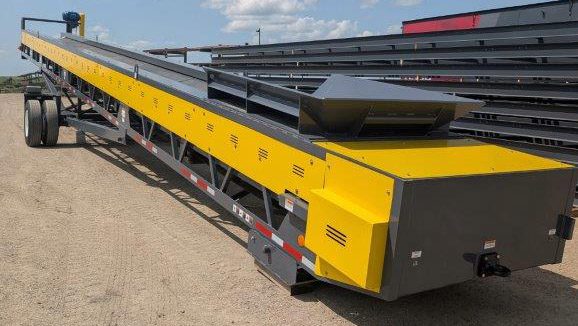

2024 Vale 4865 Heavy Duty Conveyor
The 48″ wide belt conveyor from Vale Industries is built with rugged CEMA-grade components and a heavy‑duty frame, it’s engineered for reliable, continuous operation in tough aggregate or mining environments. Ideal for high-volume material transfer, it’s a versatile solution for stockpiling, screening, or crushing setups
Get More InfoApplication: Aggregate
Manufacturer: Vale Industries
Configuration: Portable (Wheeled)
Model: 4865 Heavy Duty Conveyor
Year: 2024
New/Used: New
Location: Leduc, AB
FEATURES
Capacity
- 48” belt at 220 fpm
- 700 tph based on 100 pcf material and 18’ maximum incline
Conveyor
- 48” belt 330 3 ply 1/4×1/16 D6 Abrasion Resistant belt, vulcanized

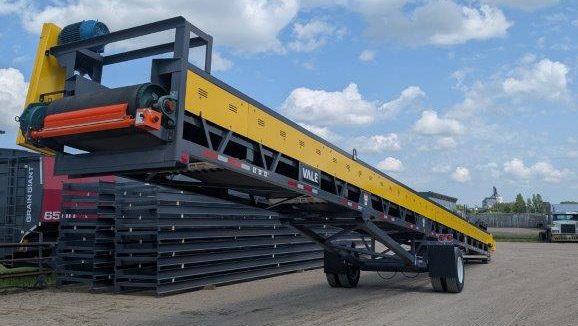

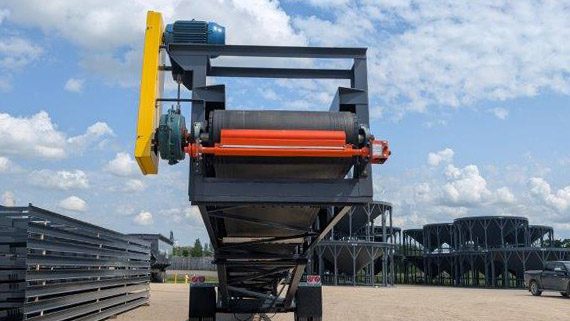

- 18” Head drum pulley, 3/8 lagged, 1045-315 shaft with 307 SCM bearing units
- 16” Wing tail pulley with screw take-up, 1045-307 shaft with 215 SCM bearing units, guarded
- Dodge TA5215H25:1 gear reducer with backstop and v-belt drive, guarded
- 30HP, 460V electric motor
- Impact Bed, 6’ long x 20° trough
-
- 10 bar design, 2 x 3’ sections
- Superior CEMA 5” 20° trough and rubber disc return idlers
-
- 3’ trough spacing, 10’ return spacing
- Martin Pit Viper Scraper

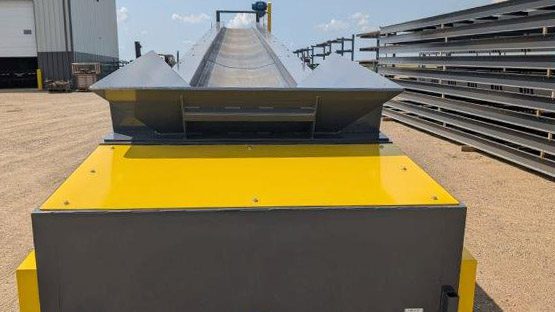

- 6’ long vertical skirt board with adjustable rubber skirting
- Full length skirt board at 36” width, bolt-on ¼” plate sections
Conveyor Structure
- 36″ Deep Truss
- L3x3x5/16 top cord, L5x3x5/16 bottom cord, L2x2x3/16 bracing
- Lift lugs on truss structure

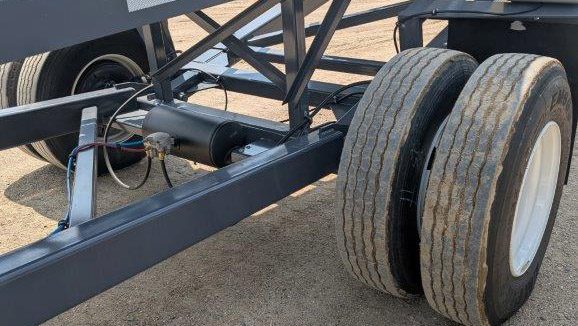

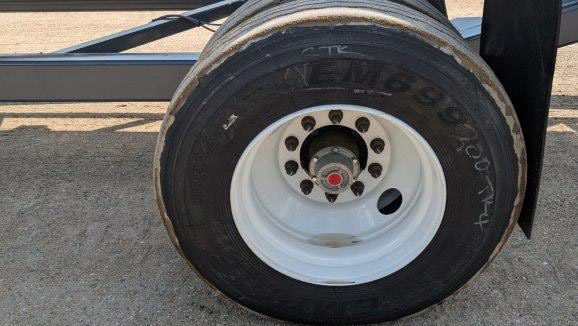

Undercarriage
- Manual Raise with Safety Pin Lock

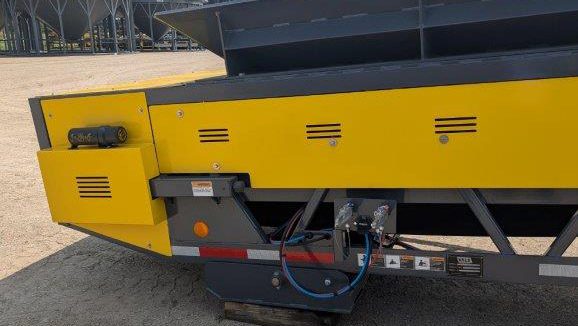

- Air Brake package, Light package, Mud flaps, relocatable glad hand & plug unit
- Kingpin and Pintle tow hitch
Urethane Coating
- Graphite Grey with Safety Yellow Guards
Owner’s Manual & Parts List
