New equipment for sale 2023 Sandvik QA441 Screener (#945)

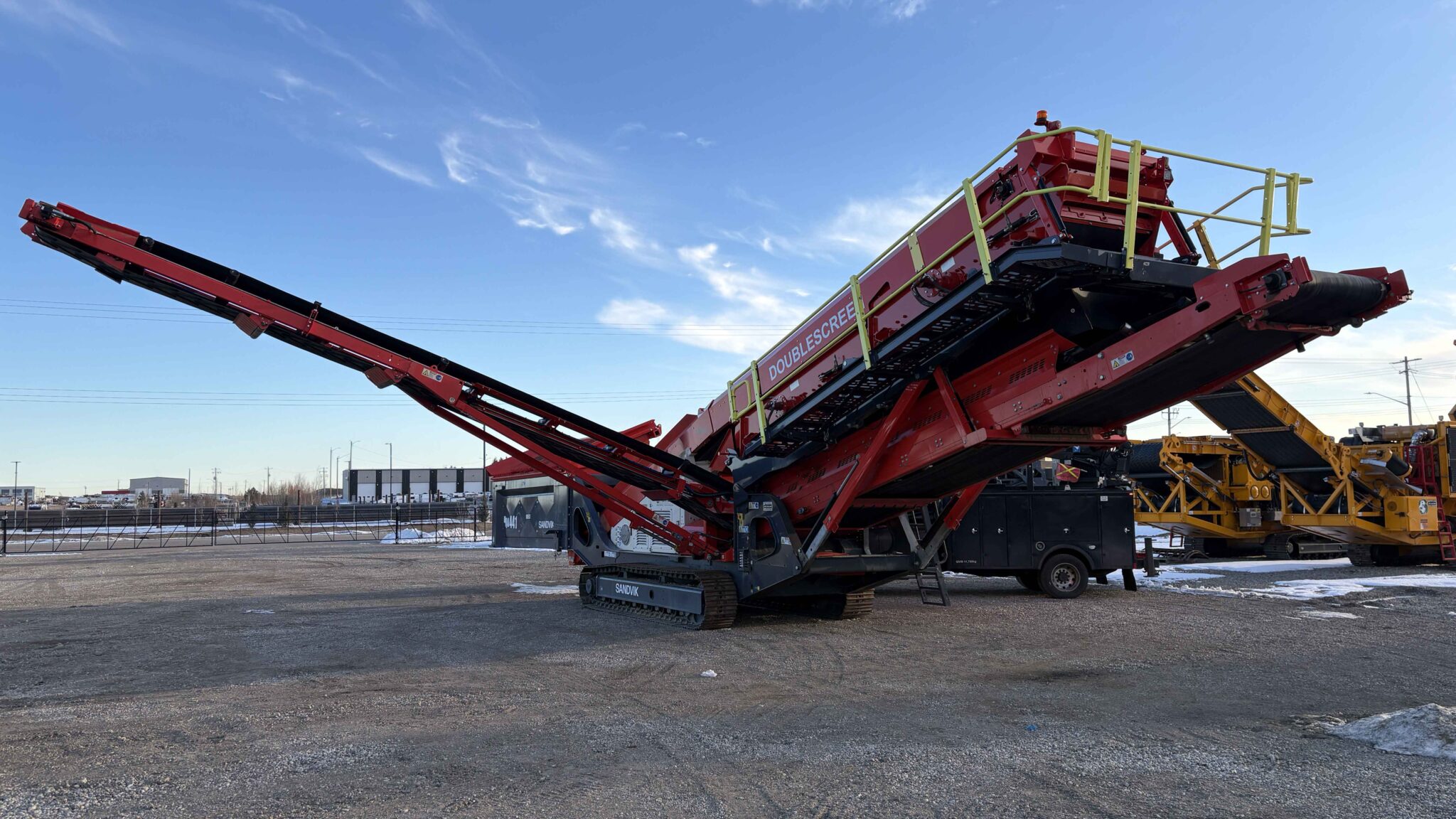

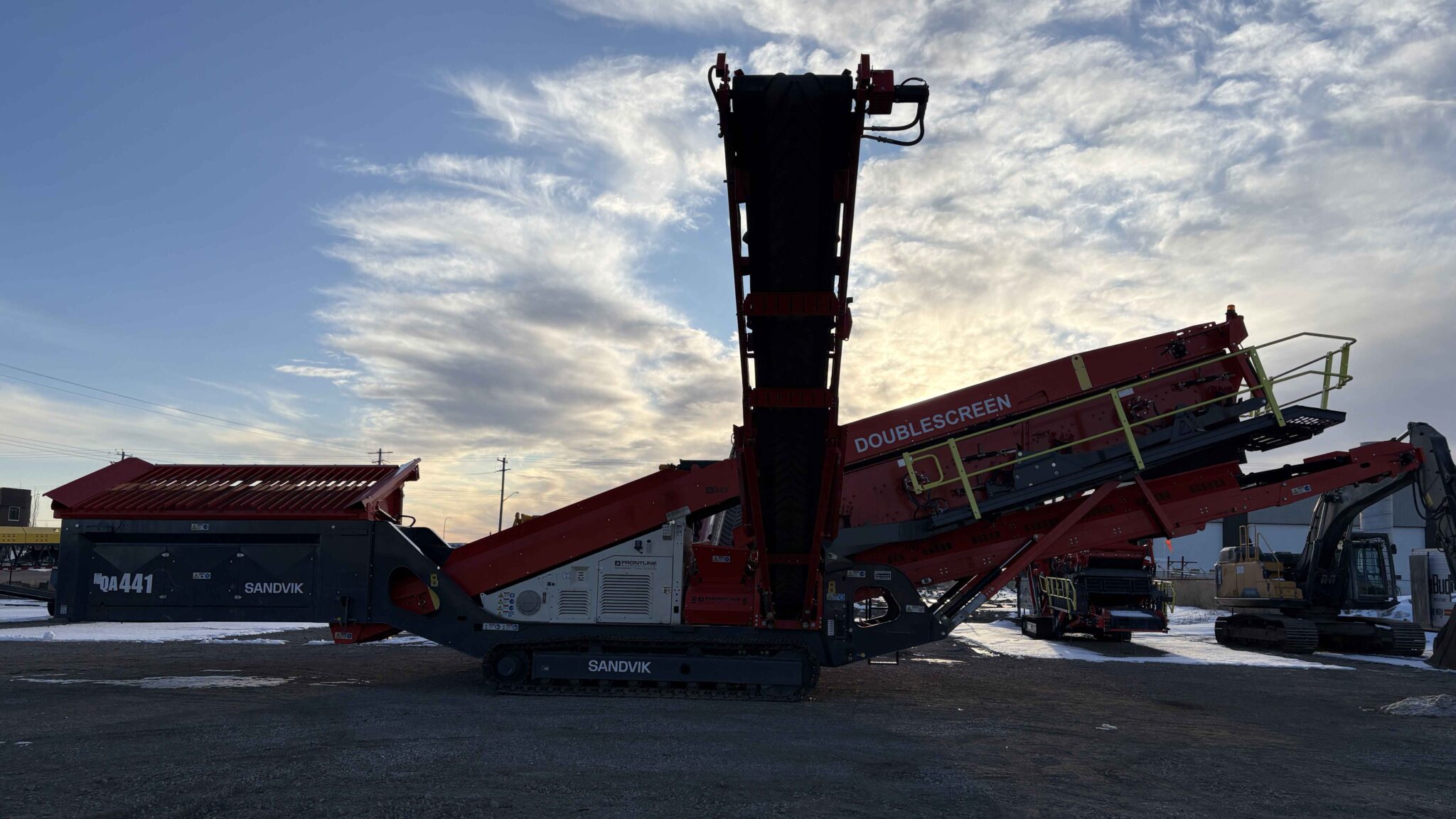

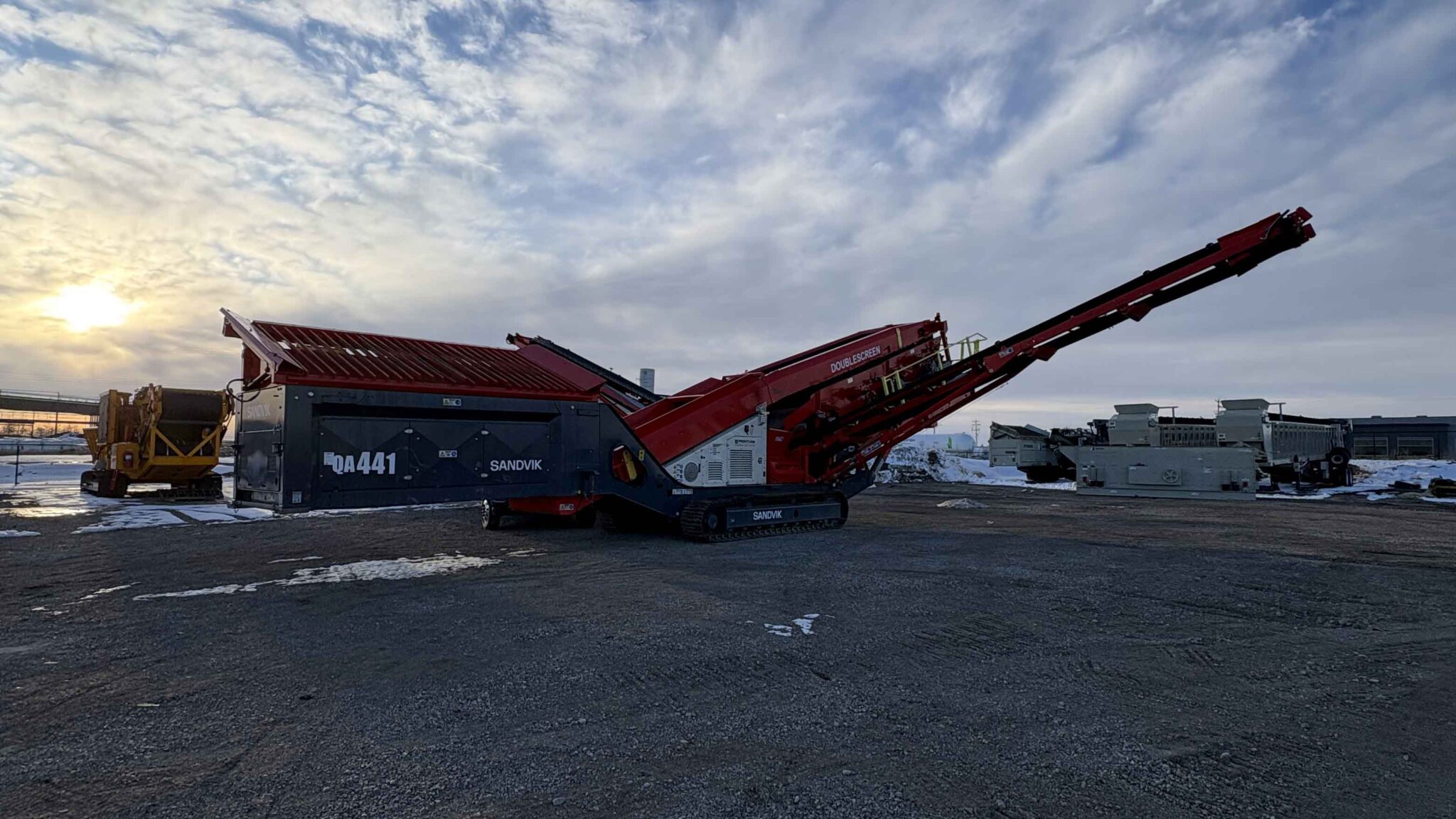

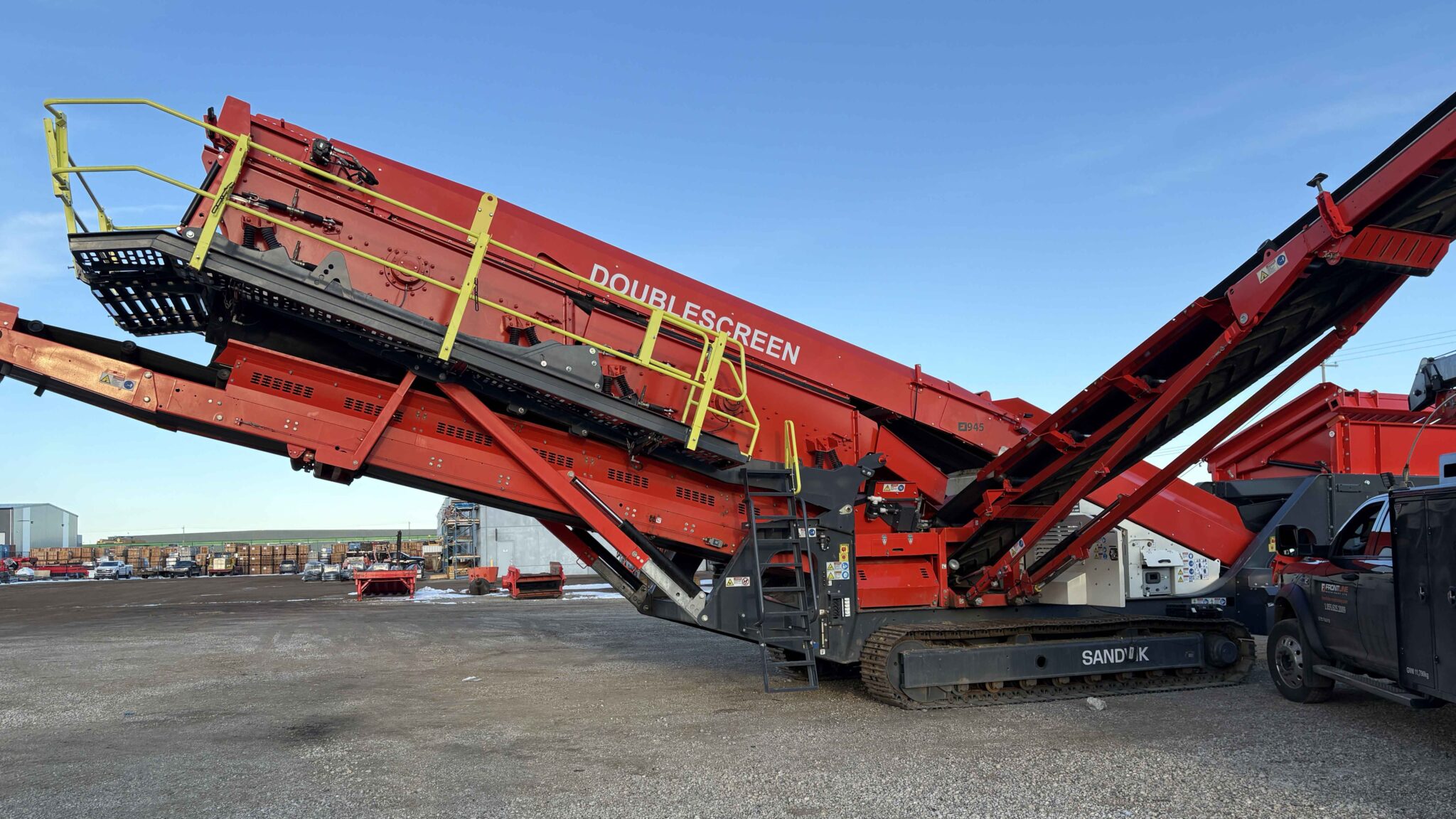

Sandvik QA441 is a highly productive 6 x 1.5 m (20 x 5 ft) double deck screen that comes equipped with their world-class, heavy-duty Doublescreen system. The two high-velocity screens work independently of each other and enable operators to perform two processes on one plant. The primary screen works as a fines extractor, whilst the secondary screen operates as a grader. Both primary and secondary screening angles can be adjusted relative to each other, offering exceptional flexibility and massive throughput.
Get More Info Financing Rent Me Technical Specs
RELIABILITY
Premium components selected throughout for maximum durability
Capable of operating in the most hostile environments
Wear resistant liners in hopper and side conveyor feed boots
Feeder load sensing facility to prevent blockages and unnecessary downtime
PRODUCTIVITY
World-class Doublescreen design 6 x 1.5 m / 20’ x 5’ enabling high throughput
Doublescreen offers greater adjustability, increased accuracy and higher screening efficiencies
The screen box delivers an aggressive and effective vibrating action up to 1200 rpm, meaning your output will be at optimum levels
Both screens independently adjustable for greater screening accuracy
Versatile unit, capable of producing large volumes of high specification product

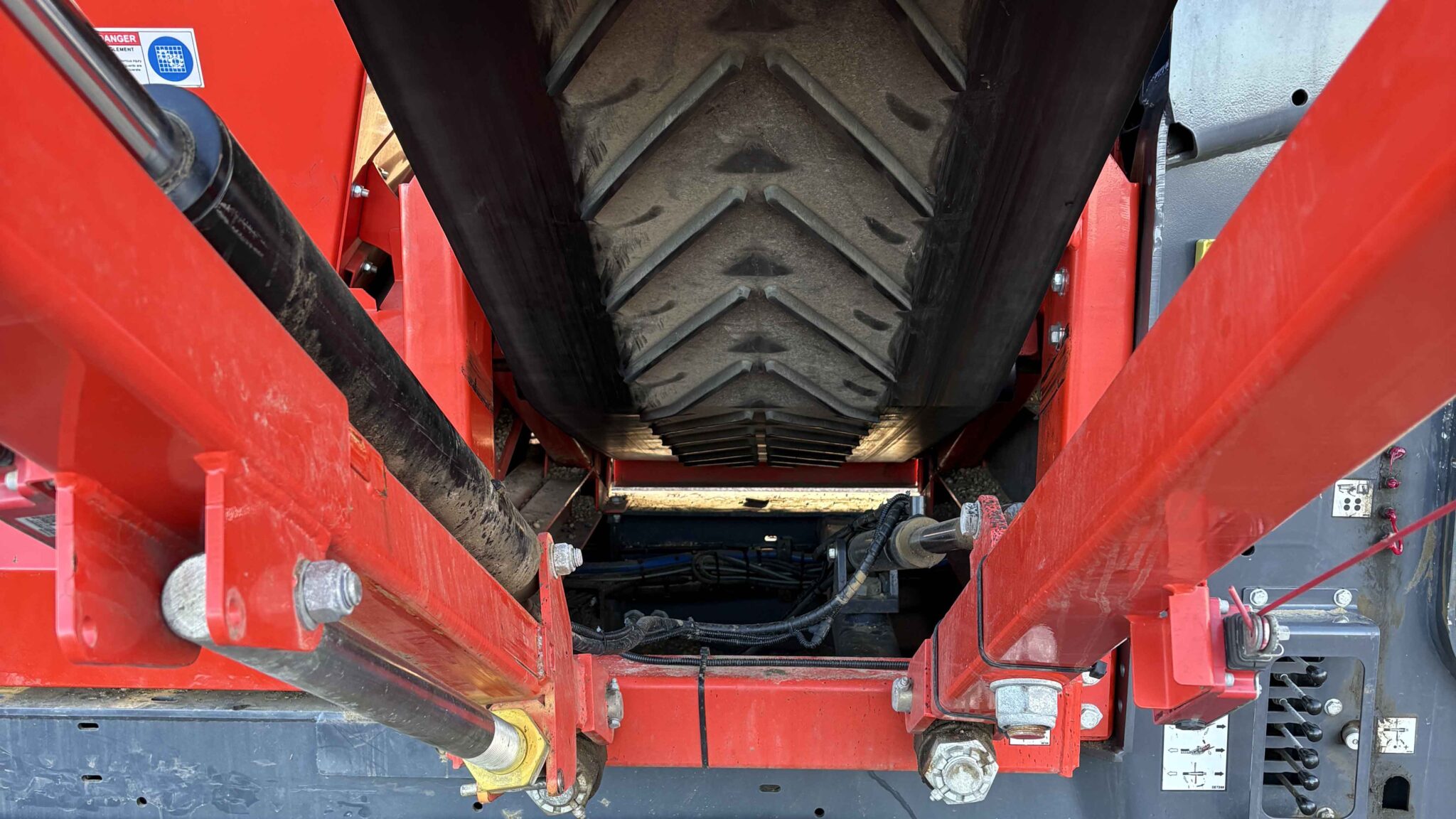

Large stockpiling capability through integrated hydraulic conveyors

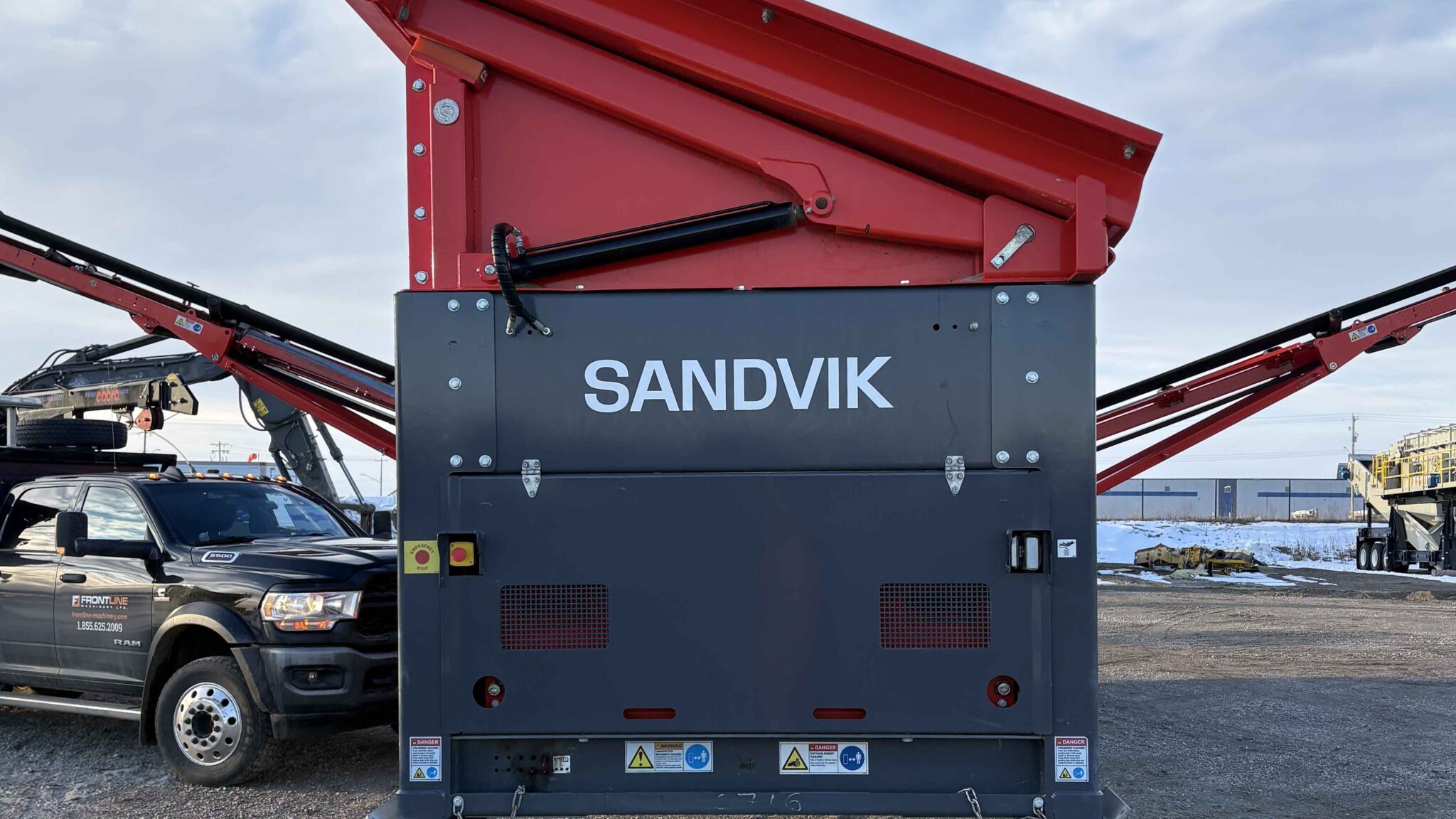

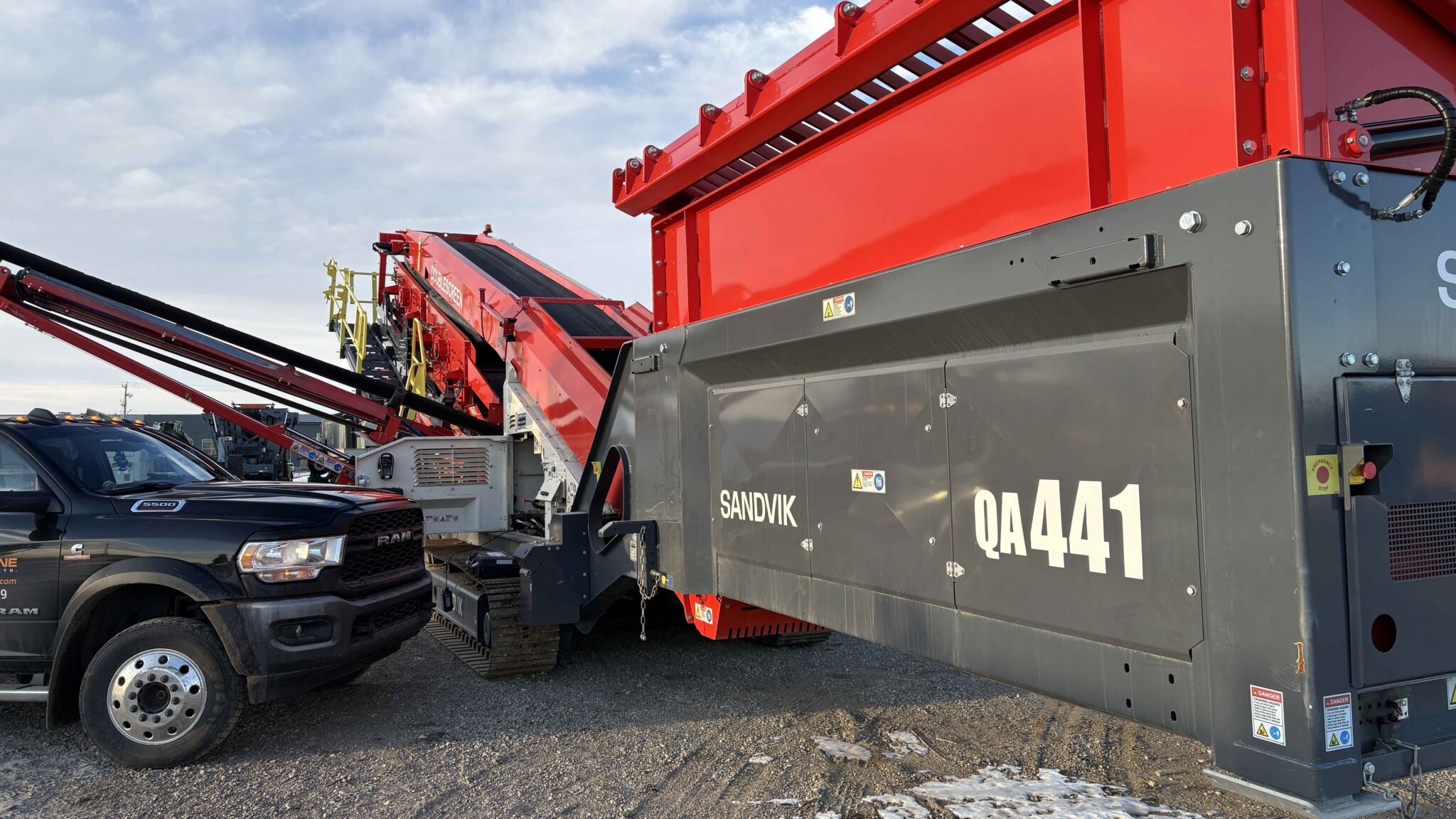

Large volume hopper with remote control hydraulic tipping grid
User friendly PLC control system with sequential start-stop for speed and ease of set-up
Choice of screen media to suit a wide range of applications
Quick to set-up and easy to transport, resulting in more uptime and higher productivity
Connected to Sandvik My Fleet with 7 year data subscription offering 24/7 fleet management, geo-fencing and
remote operator support
COST OF OWNERSHIP

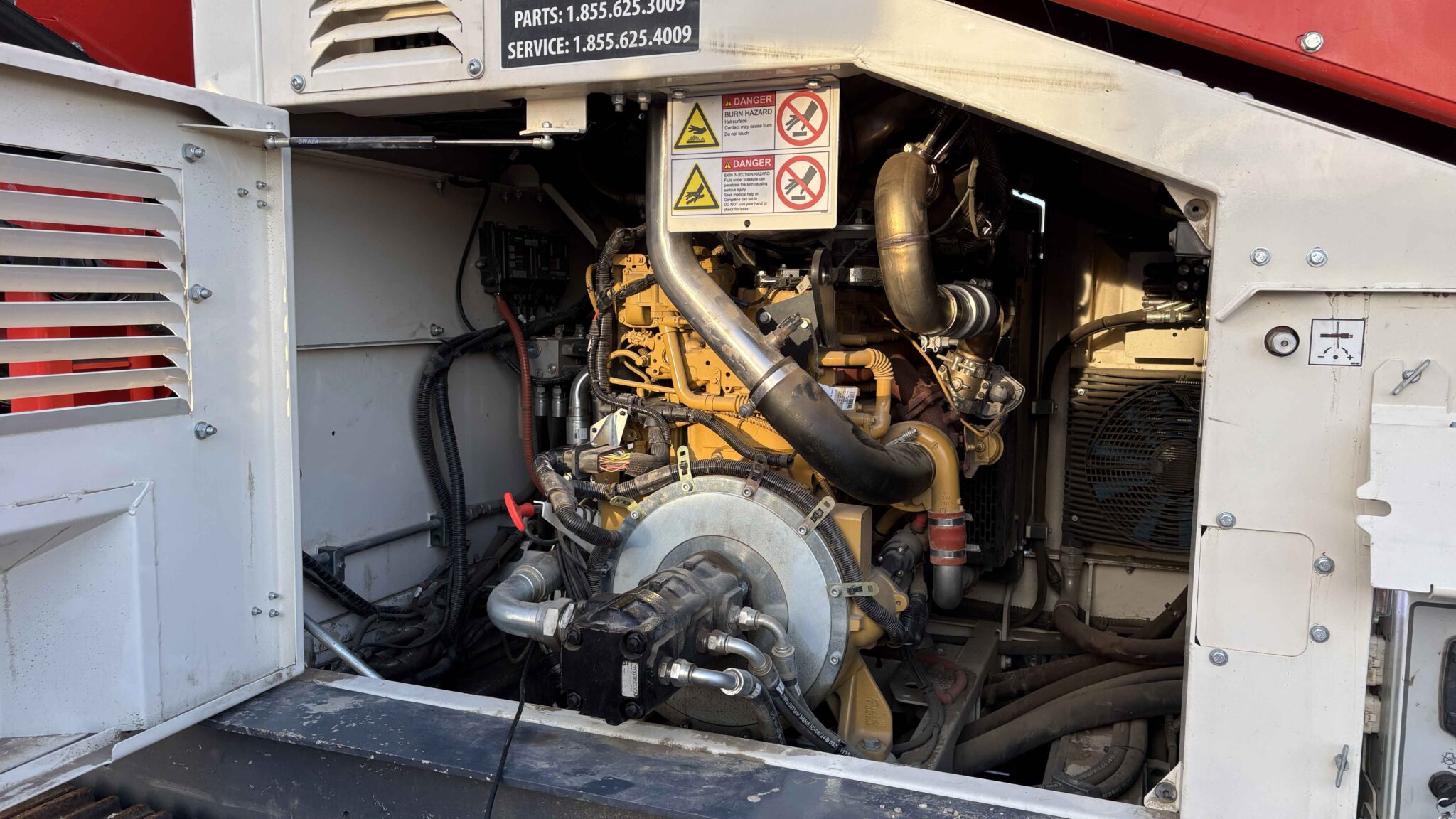

Latest generation fuel efficient engines provide maximum performance and cost efficiency
Reduced fuel consumption through optimized hydraulic system and reduced engine RPM
Well-proportioned fuel tank to maximize intervals between refueling
Reduced cost of ownership through extended hydraulic fluid change intervals from 2000 hrs to 4000 hrs
SAFETY
Mandatory audible and visual warning for safe operation whilst tracking and start-up / shut down
Emergency stop buttons and conveyor pull stop cords around the plant for easy access during operation
Wireless radio handset and two speed control for safe tracking onsite
Wrap-around hydraulically operated maintenance platforms provide safe access for service and maintenance
