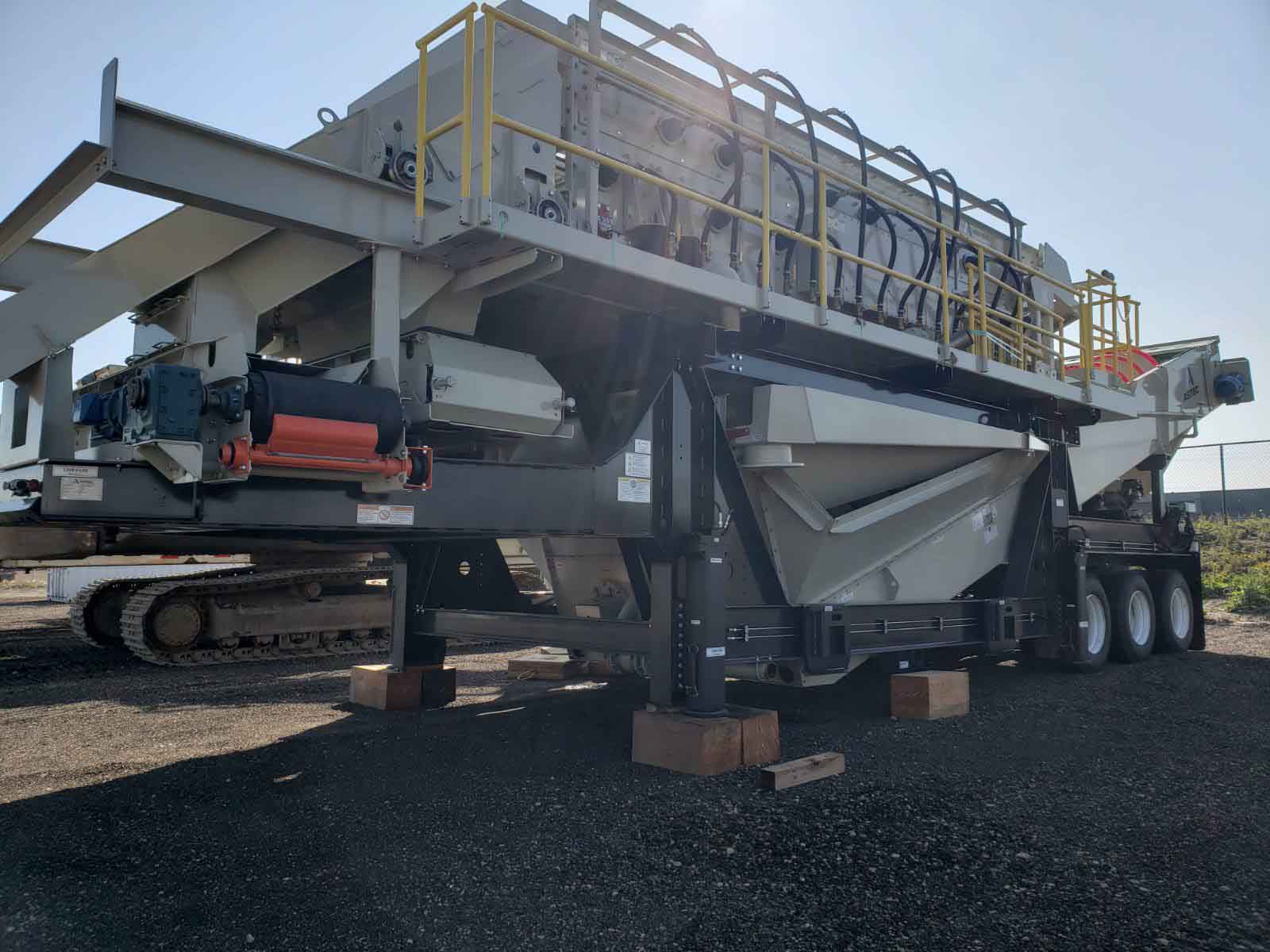

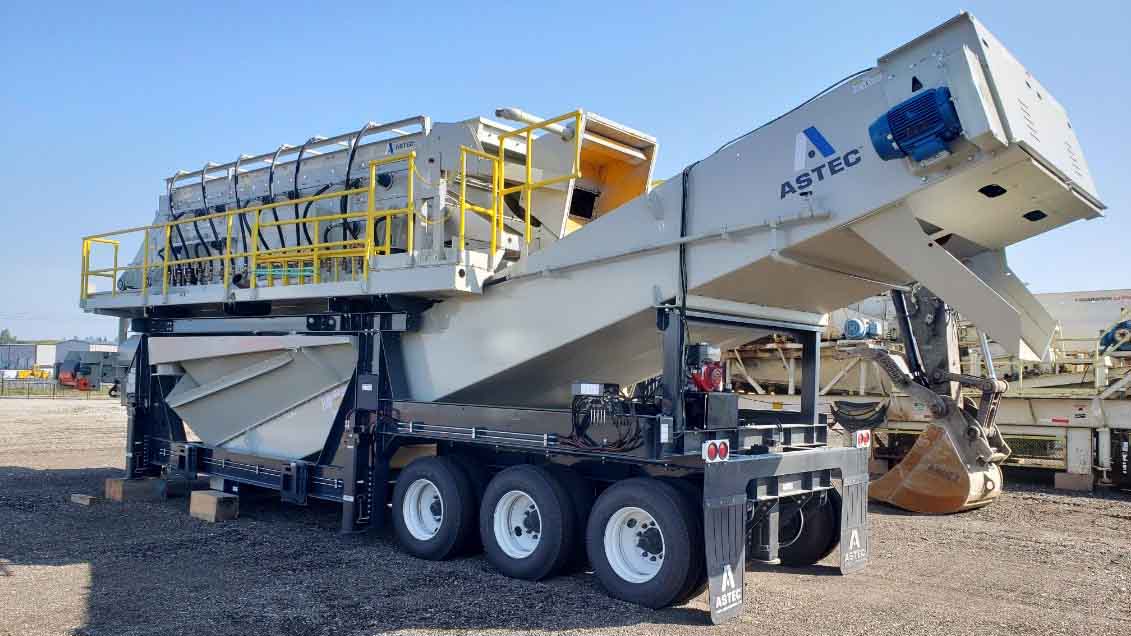

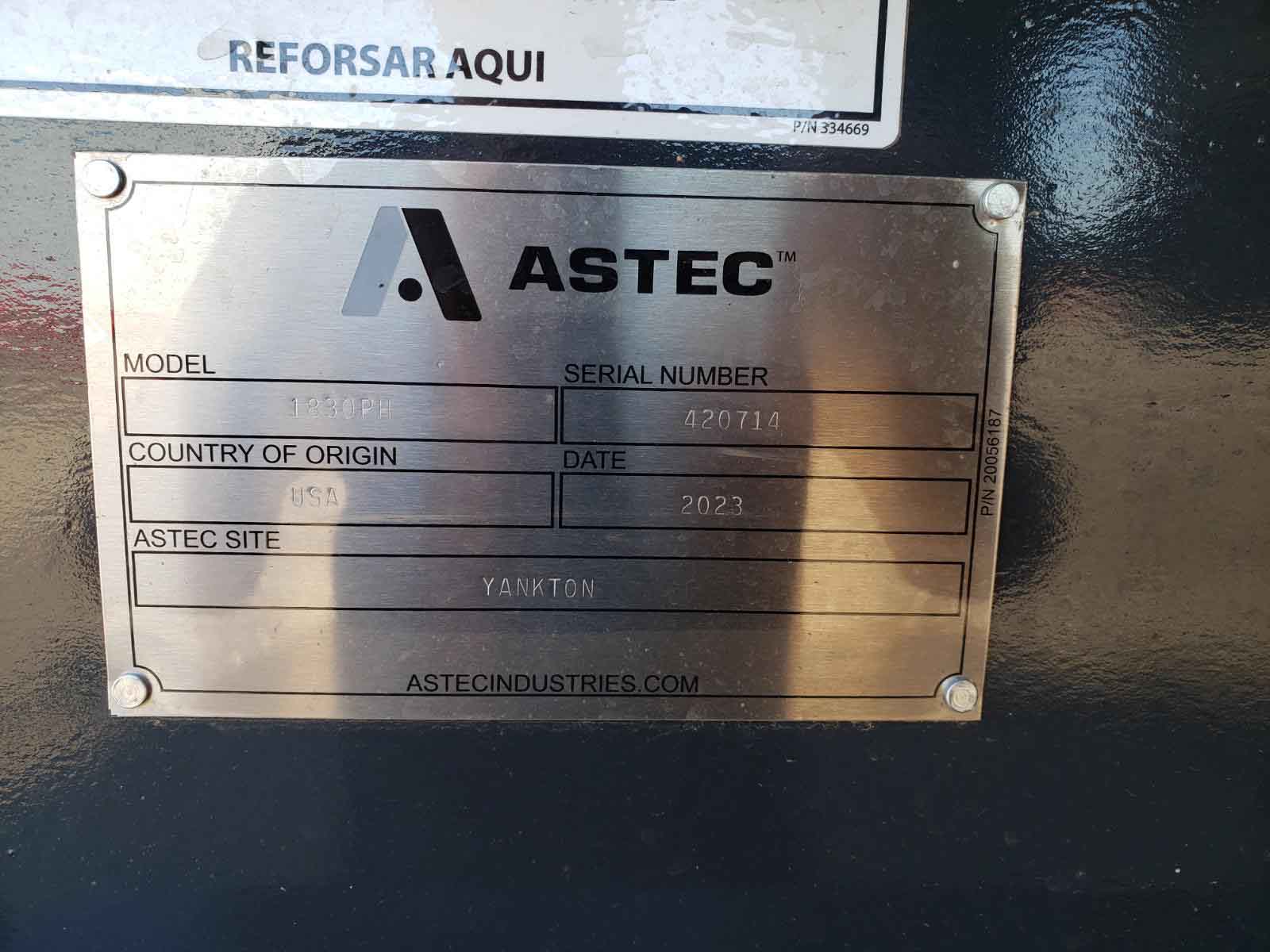

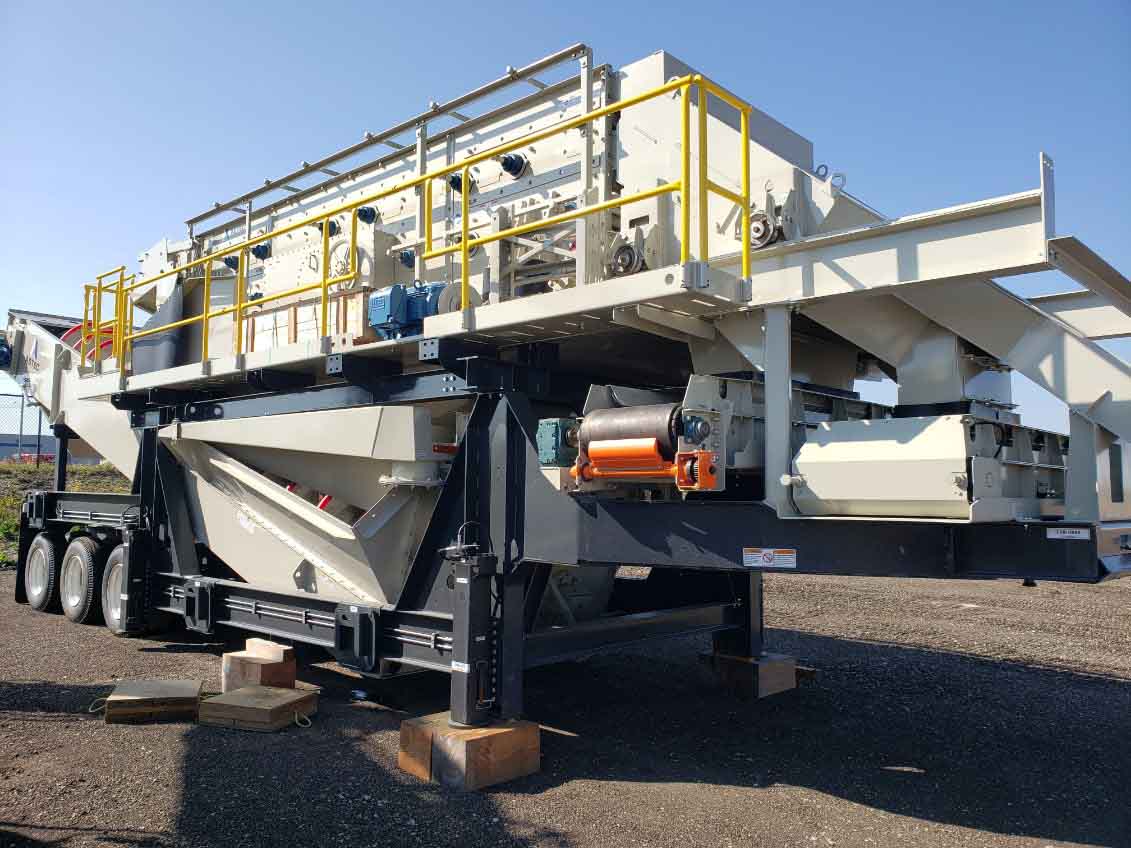

2023 Astec 1830PH Portable Wash Plant (964)

The 1830PH Screening/Washing Plant is a cutting-edge and highly efficient solution designed to meet the demanding needs of industries involved in aggregate processing, mining, construction, and more. This state-of-the-art plant represents the pinnacle of innovation and technology, offering a wide range of features and capabilities that set it apart from the competition.

Screen

• 6’ x 20’, 3-deck horizontal wet vibrating screen
• V-belt drive assembly with 40-HP, 1200 RPM motor
• 1/4” plate steel side plates
• Triple shaft vibrating mechanism complete with keyless holdfast hub locking assembly
• Bolt-on tailgates, 24” feedbox and 4” discharge lips
• Side tension drawbar screen cloth retention system (screen cloth is optional)

Fine Material Washer

• 5044-32T (44” twin) fine material washer
• Tank is of 1/4” (sides and bottom) and 3/8” (rear end plate) welded plate steel construction and includes a curved bottom with integral rising current manifold (4” dia. inlet)
• Large undisturbed pool area with adjustable weir boards and overflow flume with 12” dia outlet
• Double pitch, solid flight spiral assembly with standard AR steel inner wear shoes and standard urethane outer wear shoes
• Lower end seal – chrome plated stainless steel wear sleeve, water tight bellows type rubber seal and secondary grease seal
• High-efficiency v-belt drive assembly (one drive assembly per spiral) includes 20-HP TEFC motor and Dodge TA-II double reduction shaft mount reducer
• Tapered discharge chute set at 45o angle to grade
