Additional information
| Application | |
|---|---|
| Configuration | |
| Manufacturer | |
| Model | |
| New/Used | |
| Status |
New equipment for sale

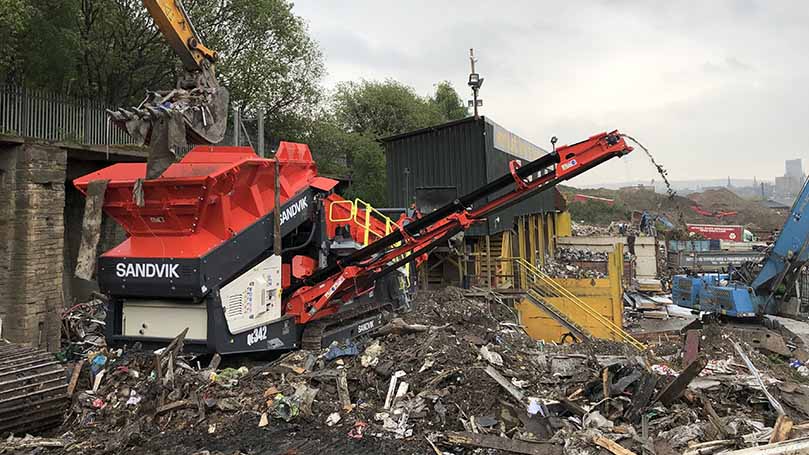

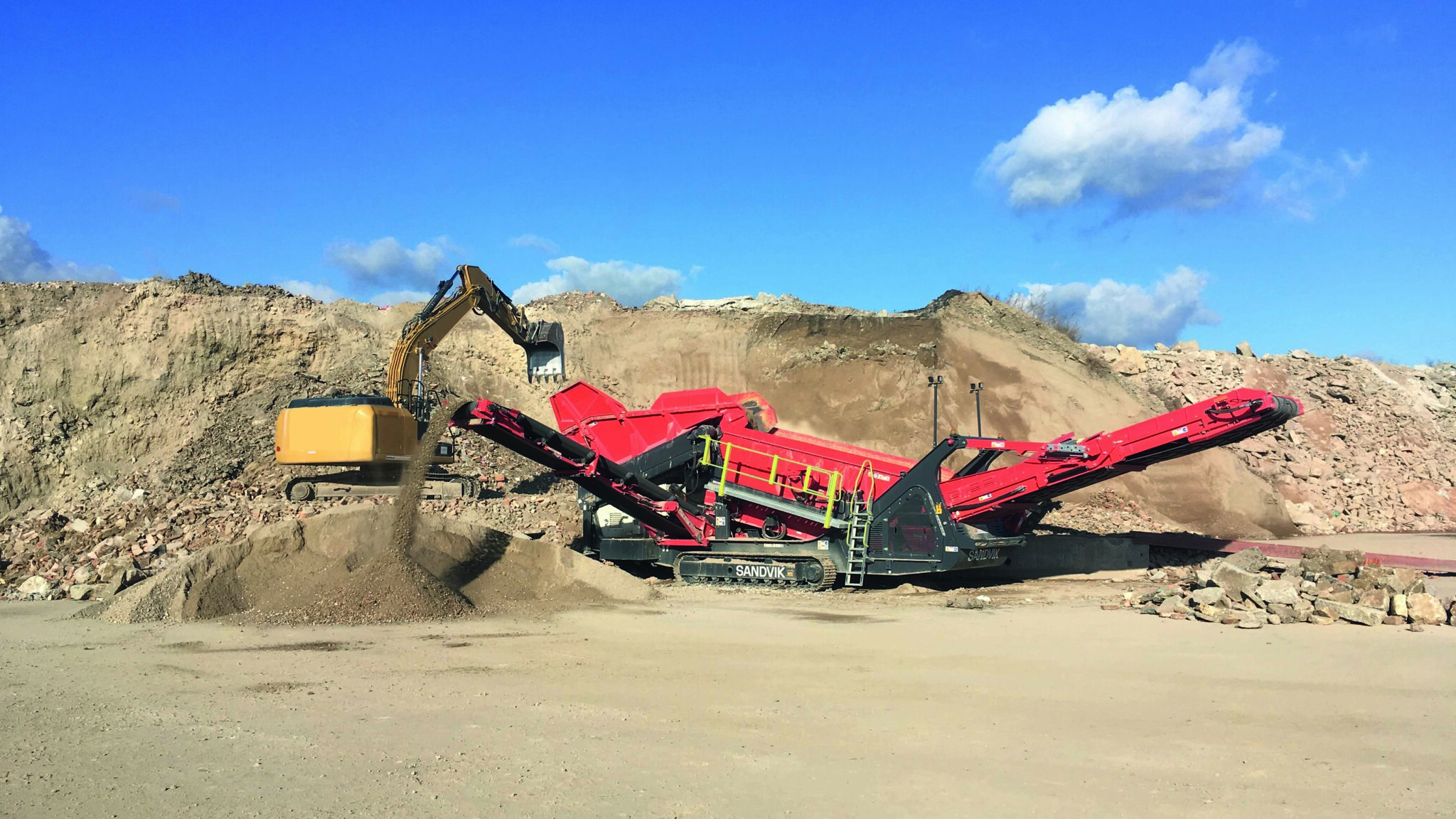

Sandvik QE342 Scalping Screener
Sandvik QE342 is a heavy duty scalper with class leading open scalping area capable of delivering enormous rates of production.
Its design and attributes means that the production of even the most-hard wearing of materials is facilitated through a wear resistant steel apron feeder, with massive stockpiling capability and over-wide conveyors that maximize delivery.
Its purpose designed crusher style chassis has been developed specifically to accommodate the latest more powerful and efficient engine power packs. Enhancing its versatility, the Sandvik QE342 incorporates a wear resistant rigid hopper which is compatible for 2-way or 3-way split configurations, as well as having the ability to interchange side conveyors thereby demonstrating the ultimate flexibility of the unit. The screen box jack up facility allows easier access to the bottom deck for maintenance and screen media changes.
Get More InfoApplication: Aggregate, Soil, Mulch and Compost
Manufacturer: Sandvik
Configuration: Mobile (Tracked)
Model: QE342 Scalping Screener
New/Used: New
Specifications
- Hopper
- 7.0 m³ Capacity
- 8′ 4″ (2.55 m) Width
- 13′ 7″ (4.16 m) Length
- Performance
- Max Feed Size of 24″ (600 mm³)
- Capacity Up To 500 mtph / 551 stph
- Max Incline / Side to Side
- 20° / 10°
- Screen Box
- 2 Bearing
- 2 Deck
- Top Deck Measures 15′ 5″ x 4′ 9″ (4.7 m x 1.45 m)
- Bottom Deck Measures 13′ 9″ x 4′ 8″ (4.2 m x 1.43 m)
- Variable Screen Angle of 11°-17°
- Engine Options:
- CAT C4.4 Stage 5 / T4F 98 kW / 132 hp
- Constant Speed 98 kW / 132 hp
- JCB Stage 5 97 kW 130 hp
- JCB T4F 93 kW / 125 hp
- Oversize Conveyor
- 55″ (1.4 m) Width
- 27’2″ (6.27 m) Length (crs)
- Side Conveyor (midsize)
- 32″ (0.8m) Width
- 13′ 5″ (4.3 m) Discharge Height
- Side Conveyor (fines)
- 32″ (0.8 m) Width
- 13′ 12″ (4.3 m) Discharge Height
Benefits
Colossal Production Capabilities
Equipped with a heavy-duty screen box and class-leading open scalping area, the QE342 delivers exceptional throughput for high-demand applications. Its high-speed, aggressive throw and choice of screen media make it ideal for tackling diverse materials with uncompromising performance.
Massive Stockpiling Capability
Integrated hydraulic conveyors and interchangeable side conveyors enable large-volume stockpiling in either 2-way or 3-way split configurations. With generous discharge heights and wide conveyor widths, it efficiently manages material flow and reduces the need for constant offloading.
Maximize Uptime
The QE342 is built for continuous operation with premium components, a wear-resistant one-piece hopper, and intelligent load-sensing to prevent blockages. Fast setup, user-friendly PLC controls, and extended maintenance intervals ensure more time is spent running and less time idling.
Why Sandvik
Improving Productivity and Profitability
Sandvik is constantly evolving their offering of equipment, tools, service and technical solutions for rock processing including crushing and screening. No matter the application, they’ll ensure you’re matched with the right solutions to maximize your productivity and profitability.
Driving Innovation Through R&D
Innovation and R&D drive Sandvik’s state-of-the-art solutions, which are all backed by application expertise: a worldwide network offering on-site service, training and round-the-clock support.
Building Lasting
Relationships
Sandvik’s strength is in their customer relationships. They spend a lot of time with you in mines, quarries and construction sites around the world, so they understand your never-ending push to increase productivity and cut costs. They conduct business in close cooperation with you, with the promise of being your proactive productivity partner.
