New equipment for sale

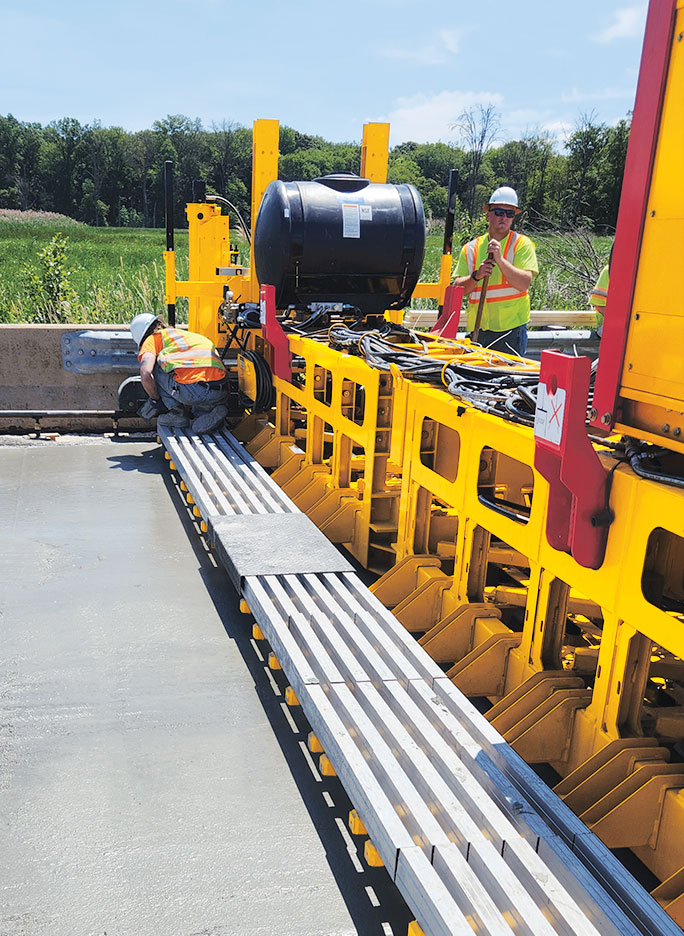

GOMACO UHPC Paver
Purpose-built paver for ultra-high performance concrete, placing bridge overlays and link slabs 6 ft. (1.83 m) to 30 ft. (9.14 m) wide.
The GOMACO UHPC Paver is purpose-built for ultra-high performance concrete, the fibre-reinforced mix used for bridge deck overlays, link slabs, and precast connections. It places UHPC from 6 ft. (1.83 m) up to 30 ft. (9.14 m) wide, and it is built heavy to handle the abrasive, aggregate-free mixes that wear ordinary paving equipment down. The G+ control system runs grade and steering from stringline.
The paver rides on four drive bogies with 12 in. (305 mm) of hydraulic leg shift at each end, so the legs move to pave zero-clearance against a barrier or curb. Six vibrator circuits are standard, and a GOMACO work bridge is included for finishing access.
UHPC preserves bridges. A link slab casts over an existing deck joint to seal it, ending the leaks that corrode the girders and bearings below, and an overlay adds a thin, dense, chloride-resistant wearing surface to a deck that would otherwise need replacing. Both extend a bridge’s life for a fraction of the cost of a rebuild, which is why the US Federal Highway Administration has pushed UHPC since 2015. The machine transports under 8.5 ft. (2.6 m) with the mold attached, and an on-board pressure washer keeps a fast-setting mix from curing where it should not.
Get More InfoApplication: Concrete Paving
Manufacturer: GOMACO
Configuration: Mobile (Tracked)
Model: UHPC Paver
New/Used: New
Performance Highlights
- Paving widths 6 ft. (1.83 m) to 30 ft. (9.14 m)
- Four drive bogies
- 12 in. (305 mm) hydraulic leg shift each end
- Zero-clearance leg positioning
- Six vibrator circuits standard
- Built heavy for abrasive UHPC mixes
- G+ control from stringline
- GOMACO work bridge standard
- On-board pressure washer, 100 gal. (378.5 L) tank
- Fuel reservoir 35 gal. (132.5 L)
- Hydraulic reservoir 33 gal. (125 L)
- Transports under 8.5 ft. (2.6 m) with mold
Benefits
Built for a punishing mix
UHPC carries steel fibres and no coarse aggregate, and it is abrasive enough to wear standard paving equipment. GOMACO built this paver heavy specifically for those mixes. The structure and the wear surfaces are made to take the material that ultra-high performance concrete throws at a machine, pour after pour.
Zero-clearance on existing structures
Each end of the machine has 12 in. (305 mm) of hydraulic leg shift, and the legs position where the job needs them. That lets the paver work tight against a barrier wall, a curb, or live traffic on a half-width closure. Bridge preservation happens on structures already in service, where clearance is rarely generous.
Set up for a fast, sensitive pour
UHPC is unforgiving. It is sensitive to temperature and sets on its own schedule, so the machine is built to keep a pour moving and clean. A GOMACO work bridge comes standard for finishing access, and an on-board pressure washer with a 100 gal. (378.5 L) tank clears the fast-setting mix off the equipment before it hardens.
G+ control and easy transport
The G+ control system runs grade and steering from stringline, with a 6.5 in. (165 mm) anti-glare display that reads in imperial or metric and every major language. The operator’s display moves to either side of the machine, and the whole paver transports under 8.5 ft. (2.6 m) with the mold still attached.
