GOMACO GT-3400 Slipform Paver
A wireless-remote, three-track curb and gutter machine offering right-side or left-side pour and a tight 24 in. (610 mm) radius.

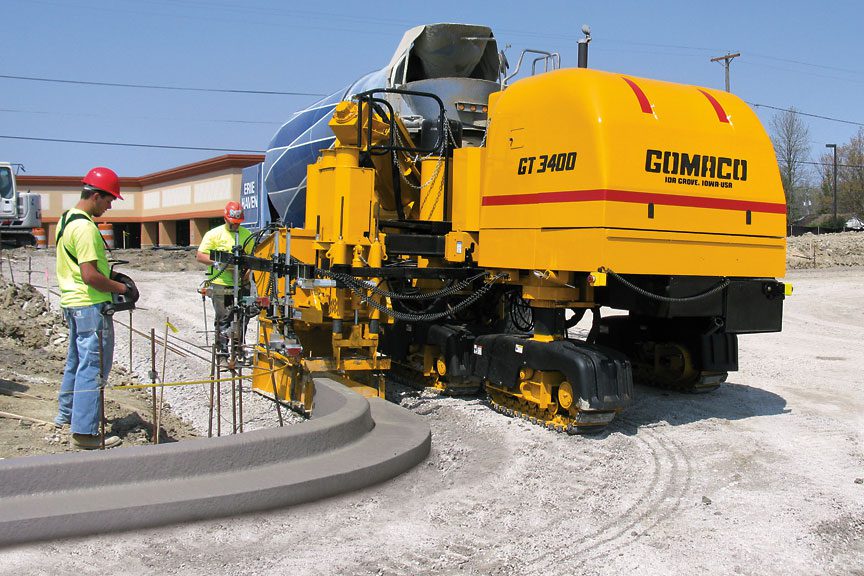

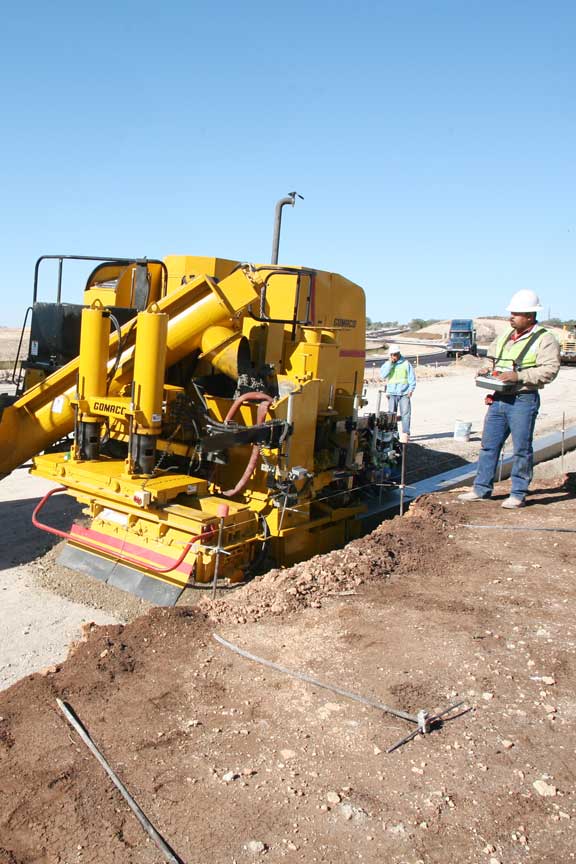

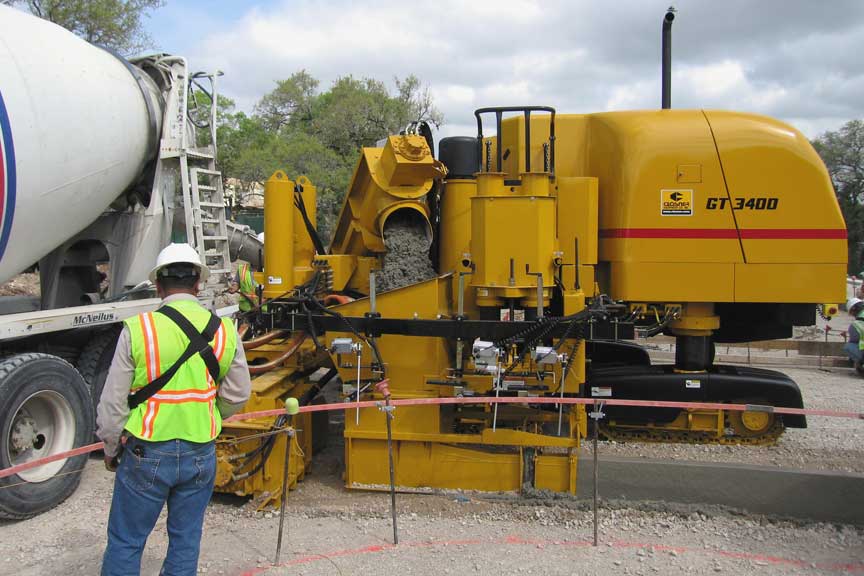

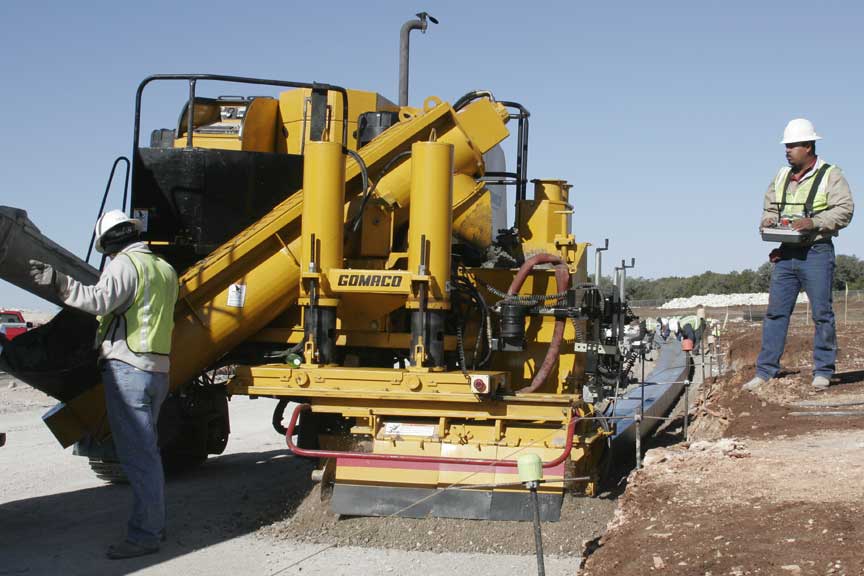

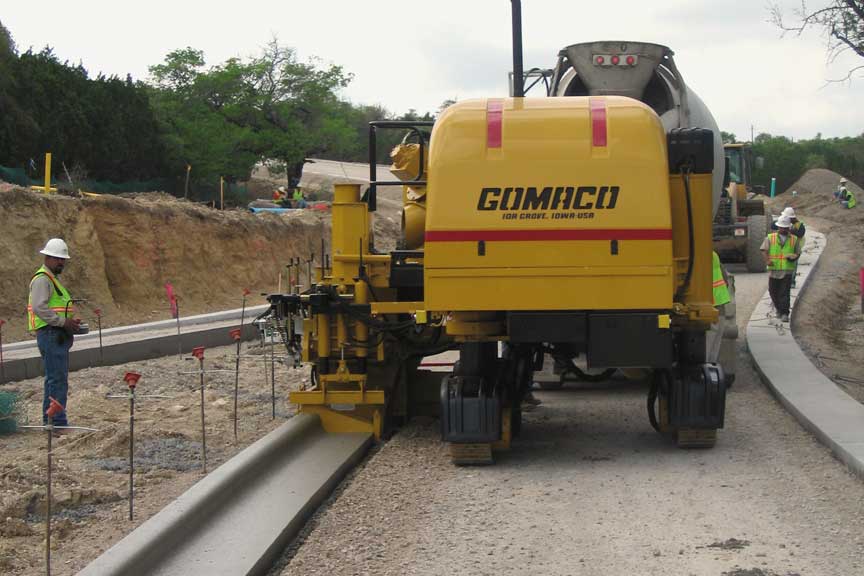

The GOMACO GT-3400 is a three-track curb and gutter machine built around a “power of choice” idea: order it for right-side or left-side pour, run it on stringline or stringless 3D control, and slipform curb and gutter, tight radius, barrier, parapet, sidewalk, or flat slab up to 6 ft. (1.83 m) wide. It changes profiles fast with GOMACO’s Hook-and-Go mold system, and its total length is under 17 ft. (5.2 m).
The GT-3400 is run by wireless remote. The whole machine operates from a 6.75 lb. (3.1 kg) remote that frees the operator to walk the pour and watch the mold, with every function on it including vibrator control and emergency stop.
Tight-radius curb is where it shines. A 24 in. (610 mm) radius ribbon curb is achievable through the machine’s three-track design, three steer sensors, extra-large hopper, and All-Track Steering, which steers all three tracks so the machine follows a radius accurately instead of skidding across the grade. The simultaneous trim-and-pour setup runs the most powerful trimmer on the market: a direct-drive radial-piston head delivering 28,684 in-lb (3241 N·m) of torque, with trimming width variable from 30 in. (762 mm) to 78 in. (1981 mm). A 136 hp (101.5 kW) Caterpillar diesel powers it all, and the remote can be tethered where transmitting is not allowed.
Get More InfoApplication: Concrete Paving
Manufacturer: GOMACO
Configuration: Mobile (Tracked)
Model: GT-3400 Slipform Paver
New/Used: New
See the GOMACO GT-3400 Slipform Paver in action!
Watch the three-track GT-3400 slipform curb and gutter under wireless remote control, and see the direct-drive trimmer and Hook-and-Go mold system at work.
Performance Highlights
- Three-track curb and gutter machine
- Right-side or left-side pour, ordered to spec
- Wireless remote control of every function
- Slipforms a 24 in. (610 mm) radius
- Simultaneous trim-and-pour in one pass
- Hook-and-Go mold system for fast changes
- 136 hp (101.5 kW) Caterpillar diesel
- Most powerful trimmer on the market
- Trimmer torque 28,684 in-lb (3241 N·m)
- Trim width 30 in. (762 mm) to 78 in. (1981 mm)
- Job-site travel to 125 fpm (38 mpm)
- Slipforms barrier and parapet to 50 in. (1270 mm)
Benefits
Run it from a remote
The GT-3400 operates entirely from a 6.75 lb. (3.1 kg) wireless remote, which frees the operator to walk alongside the machine and watch the mold and trimmer directly. Every function is on it, including vibrator control and an emergency stop. Safety features stop the machine if it loses signal, and it can be tethered where needed.
The industry’s most powerful trimmer
The GT-3400 trims and pours in one pass, and its trimmer is the most powerful on the market. A direct-drive radial-piston hydraulic motor delivers 28,684 in-lb (3241 N·m) of torque at the head, with a faster tooth-tip speed that clears trimmed material quickly. The 24 in. (610 mm) head runs Kennametal teeth and adjusts to 78 in. (1981 mm) wide.
Built for tight-radius curb
A 24 in. (610 mm) radius ribbon curb is within reach. Three steer sensors and All-Track Steering turn all three tracks so the machine follows a radius accurately instead of skidding, and an extra-large hopper keeps it moving without waiting on a truck. Its under-17 ft. (5.2 m) length fits the tight islands of a parking lot job.
Right or left, string or stringless
The GT-3400 can be ordered as a right-side or left-side pour machine, matching how a contractor’s crews and sites work. It runs on stringline or stringless 3D guidance without changing the control platform, and profiles change fast with the Hook-and-Go mount, which hooks to a plate with no pins or latches.
