New equipment for sale
GOMACO GT-3400 Sidewalk Trimmer
A compact three-track, wireless-remote grade trimmer that prepares subgrade for zero-clearance sidewalk and scab-on curb and gutter paving.

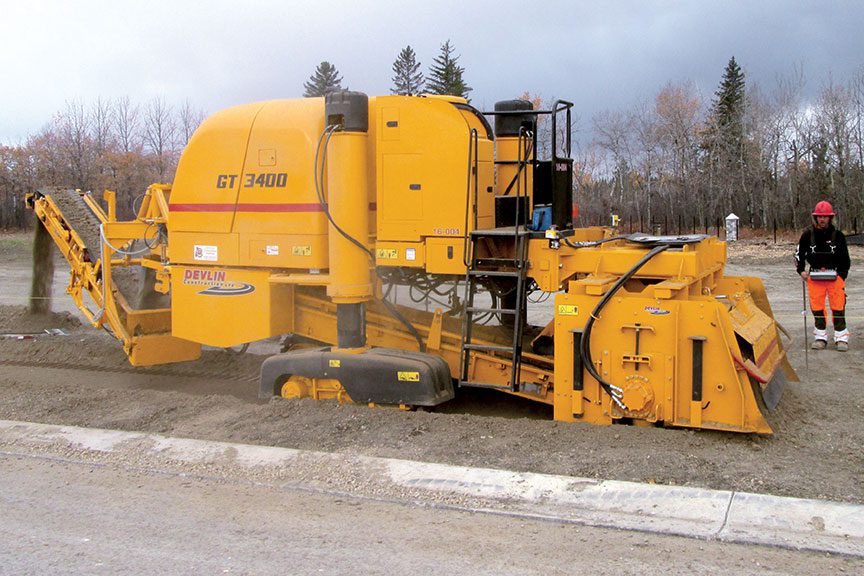

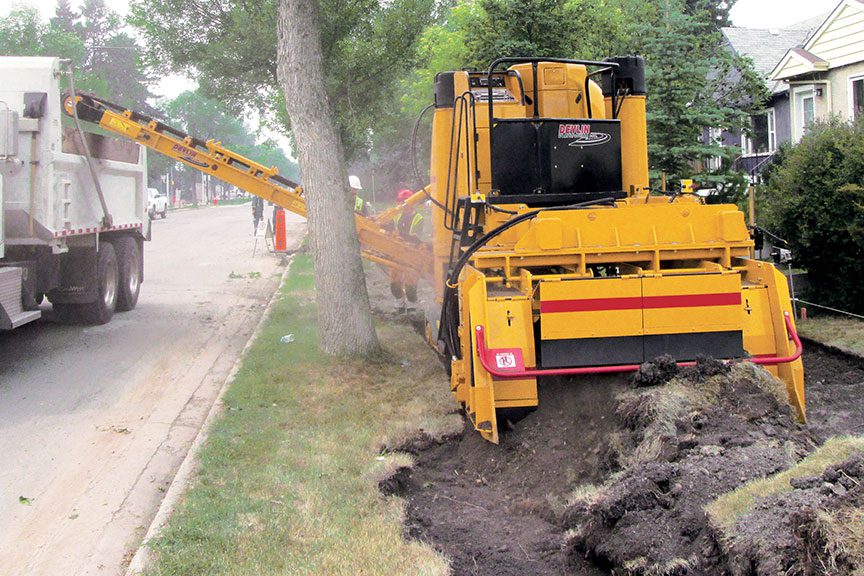

The GOMACO GT-3400 Sidewalk Trimmer is a grade-preparation machine, not a paver. It trims accurate subgrade for narrower-width, zero-clearance flat or monolithic sidewalk and curb and gutter, handling standard and monolithic sidewalk profiles up to 8 ft. (2.4 m) wide. Built on the three-track GT-3400 platform, it is compact enough to fit between the trees, utility poles, and other obstacles that crowd a residential sidewalk lane.
The machine is run by wireless remote, so the operator can move freely around the job site while trimming, and conveyor positioning and folding are controlled from the discharge conveyor. Its three-track design and All-Track Steering make it easy to work between obstacles and load for transport.

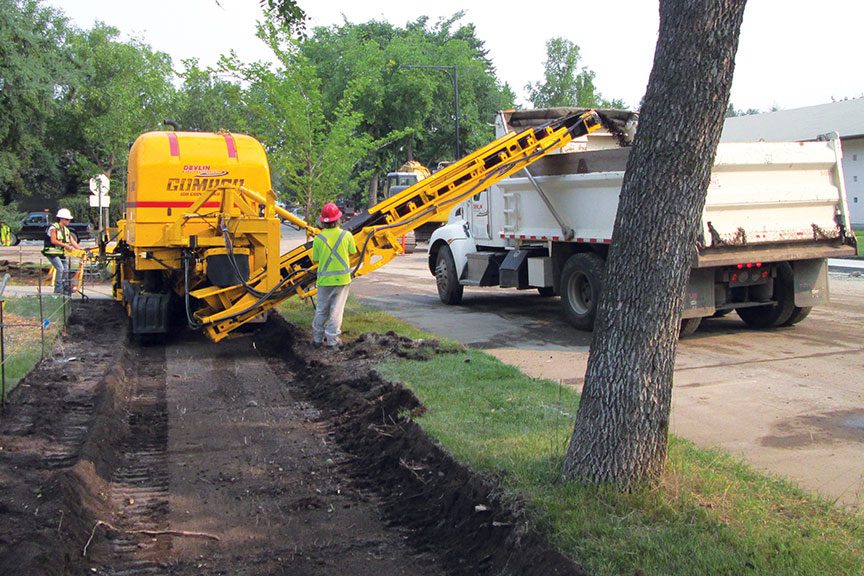

Moving the trimmed material off the grade is a two-conveyor job. A 15 ft. (4.6 m) long, 15 in. (381 mm) wide transfer conveyor carries spoil back to a 19 ft. (5.8 m) long, 20 in. (508 mm) wide discharge conveyor that loads it into haul units. The discharge conveyor folds and swings 90 degrees from centre to clear a tree or a pole without stopping the pass, and a hydraulic front gate on the trimmerhead raises to trim through windrowed material or lowers for standard trimming. For transport, the discharge conveyor centres and folds, and the whole machine drives onto a trailer with the trimmerhead attached.
Get More InfoApplication: Concrete Paving
Manufacturer: GOMACO
Configuration: Mobile (Tracked)
Model: GT-3400 Sidewalk Trimmer
New/Used: New
Performance Highlights
- Grade trimmer, prepares subgrade for paving
- Trims sidewalk profiles up to 8 ft. (2.4 m) wide
- Three-track design with All-Track Steering
- Zero-clearance operation between obstacles
- Wireless remote control of the machine
- Hydraulic front gate for windrowed material
- 15 ft. (4.6 m) by 15 in. (381 mm) transfer conveyor
- 19 ft. (5.8 m) by 20 in. (508 mm) discharge conveyor
- Discharge conveyor folds and swings 90 degrees
- Optional 30 in. (762 mm) sidemounted trimmerhead
- Sidemount trims 19 in. (483 mm) below grade
- Drives onto a trailer with trimmerhead attached
Benefits
Grade prep, not paving
The GT-3400 trimmer does one job well: it prepares accurate subgrade for sidewalk and curb-and-gutter paving. It trims standard and monolithic sidewalk profiles up to 8 ft. (2.4 m) wide, and a hydraulic front gate raises to cut through windrowed material or lowers for a standard trim. Accurate grade is what a good pour depends on.
Fits where a paver crew works
Built on the three-track GT-3400 platform, the trimmer is compact enough for zero-clearance work in an existing sidewalk lane, threading between trees, poles, and hydrants. Three-track All-Track Steering makes it easy to steer around obstacles, get on and off the stringline, and load for transport, so it works the same tight sites the crew does.
Two conveyors clear the spoil
The trimmer moves cut material off the grade and into haul units with two conveyors. A 15 ft. (4.6 m) transfer conveyor feeds a 19 ft. (5.8 m) discharge conveyor, and the discharge conveyor folds and swings 90 degrees from centre to clear a tree or pole mid-pass. The machine keeps trimming while the ground crew manages the material.

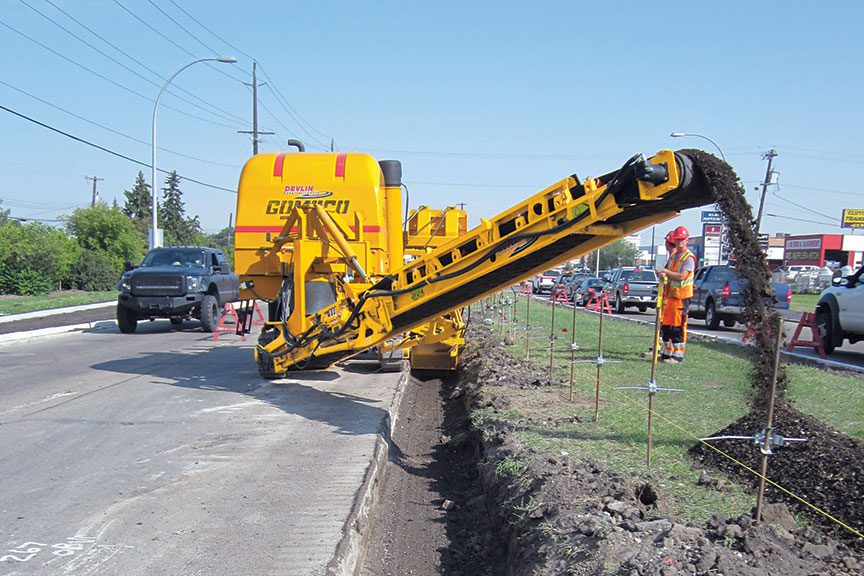

A sidemounted head for scab-on work
An optional sidemounted trimmerhead adapts the machine for narrower scab-on curb and gutter. The 30 in. (762 mm) wide, closed-loop head has 18 in. (457 mm) of hydraulic vertical lift and trims up to 19 in. (483 mm) below existing grade. On its first job it hit accurate grade in about an hour, work that would take a backhoe all day.
