2024 CBI 5800BT Horizontal Grinder (#972)

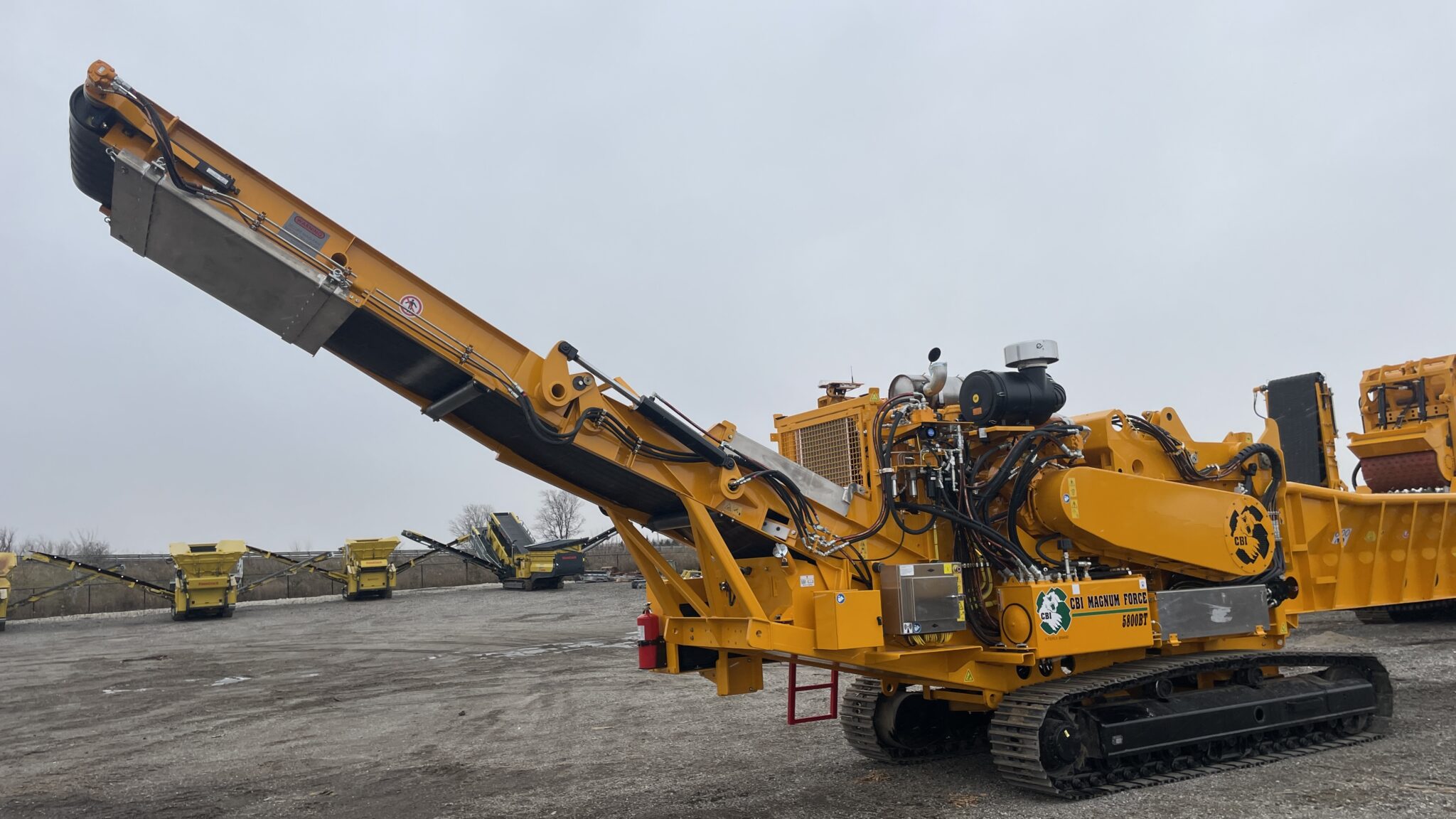

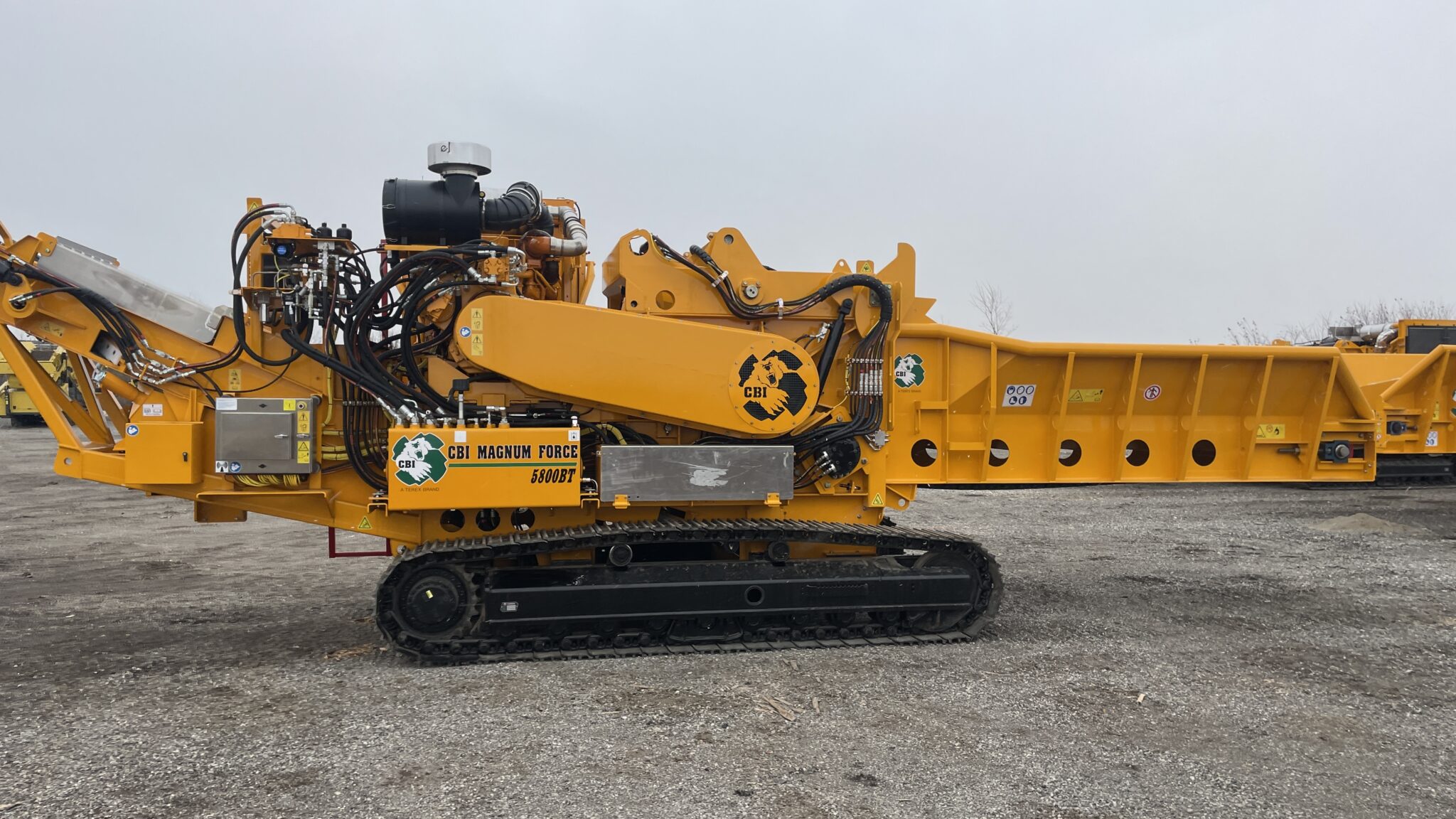

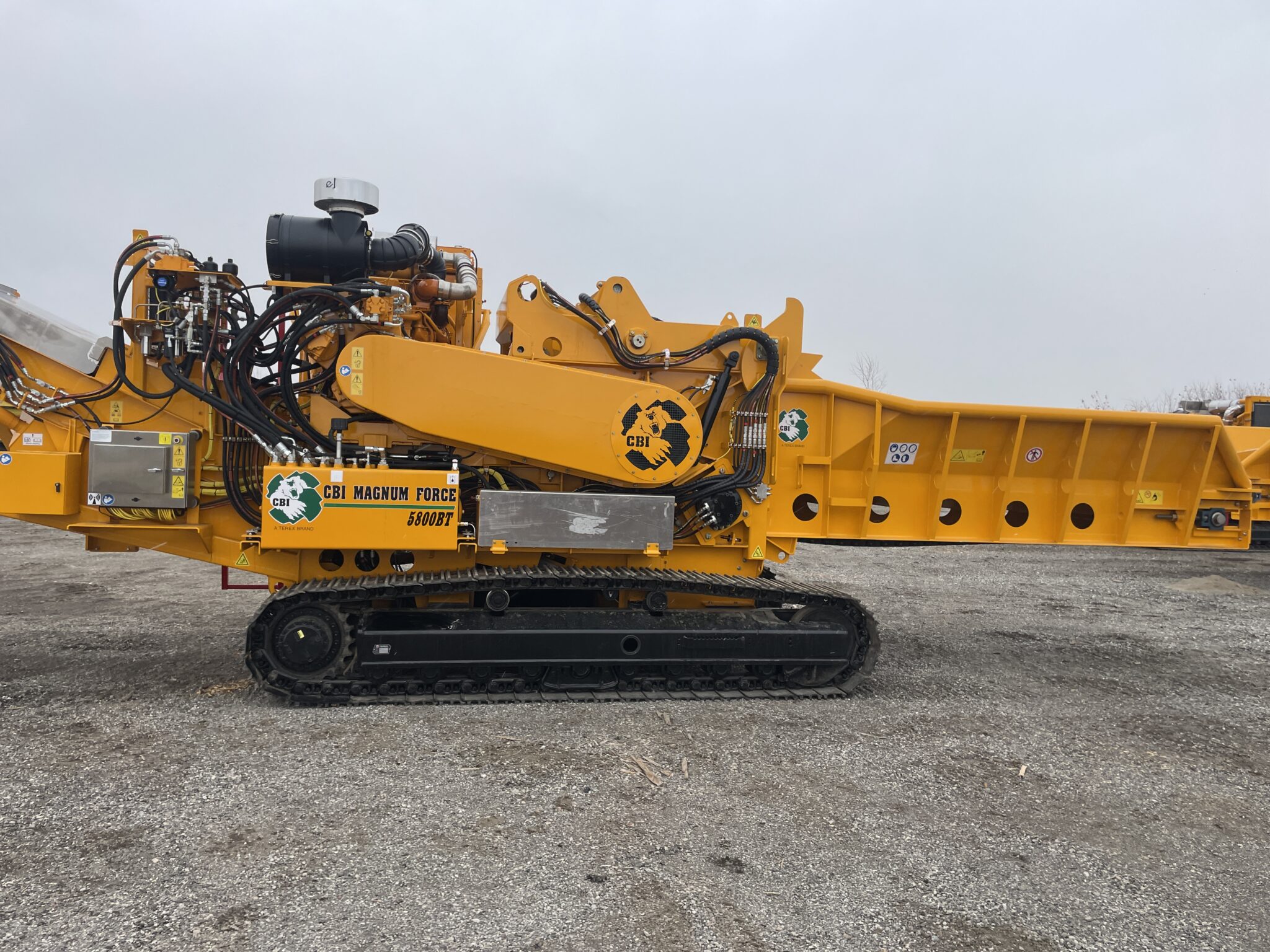

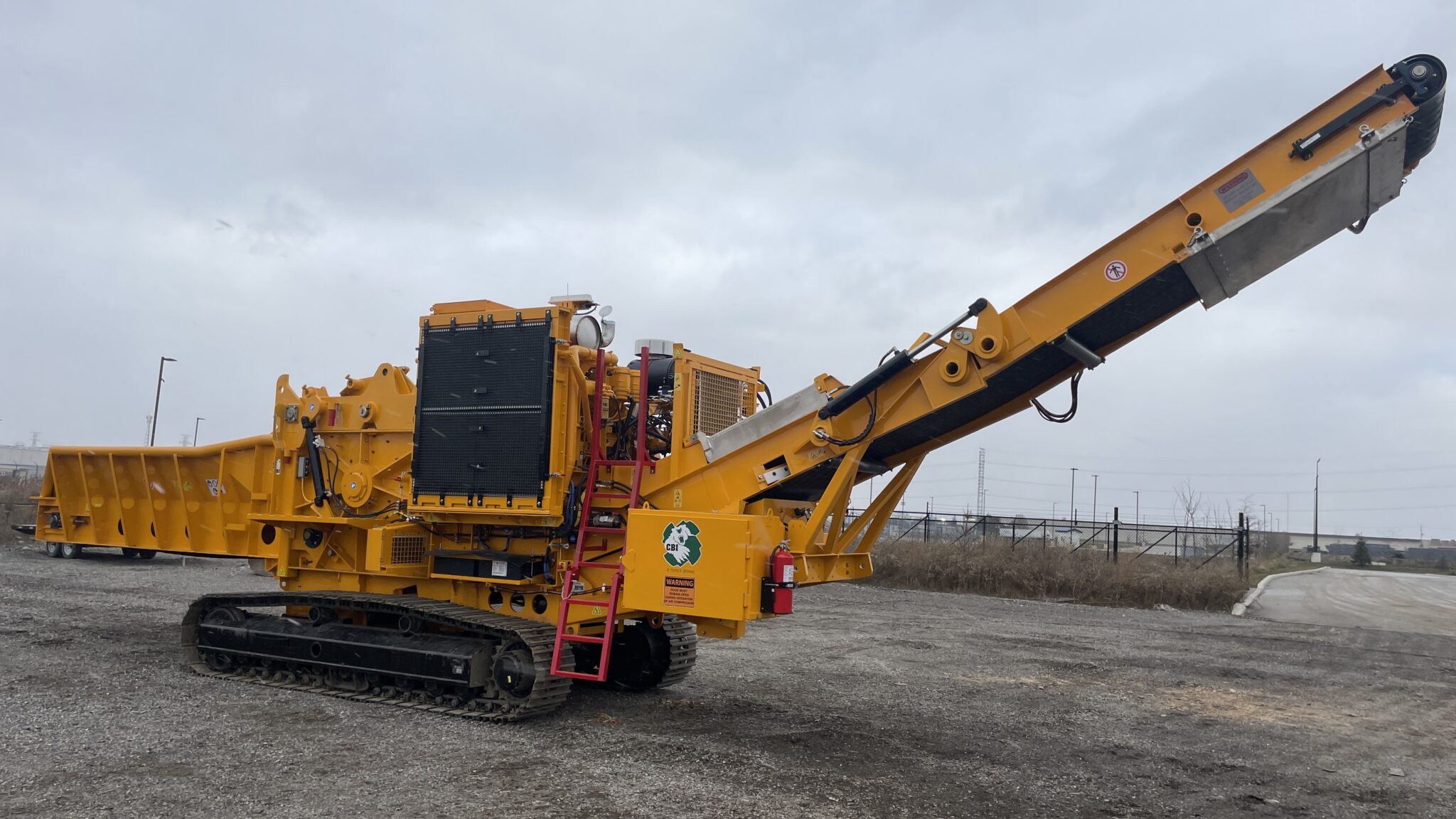

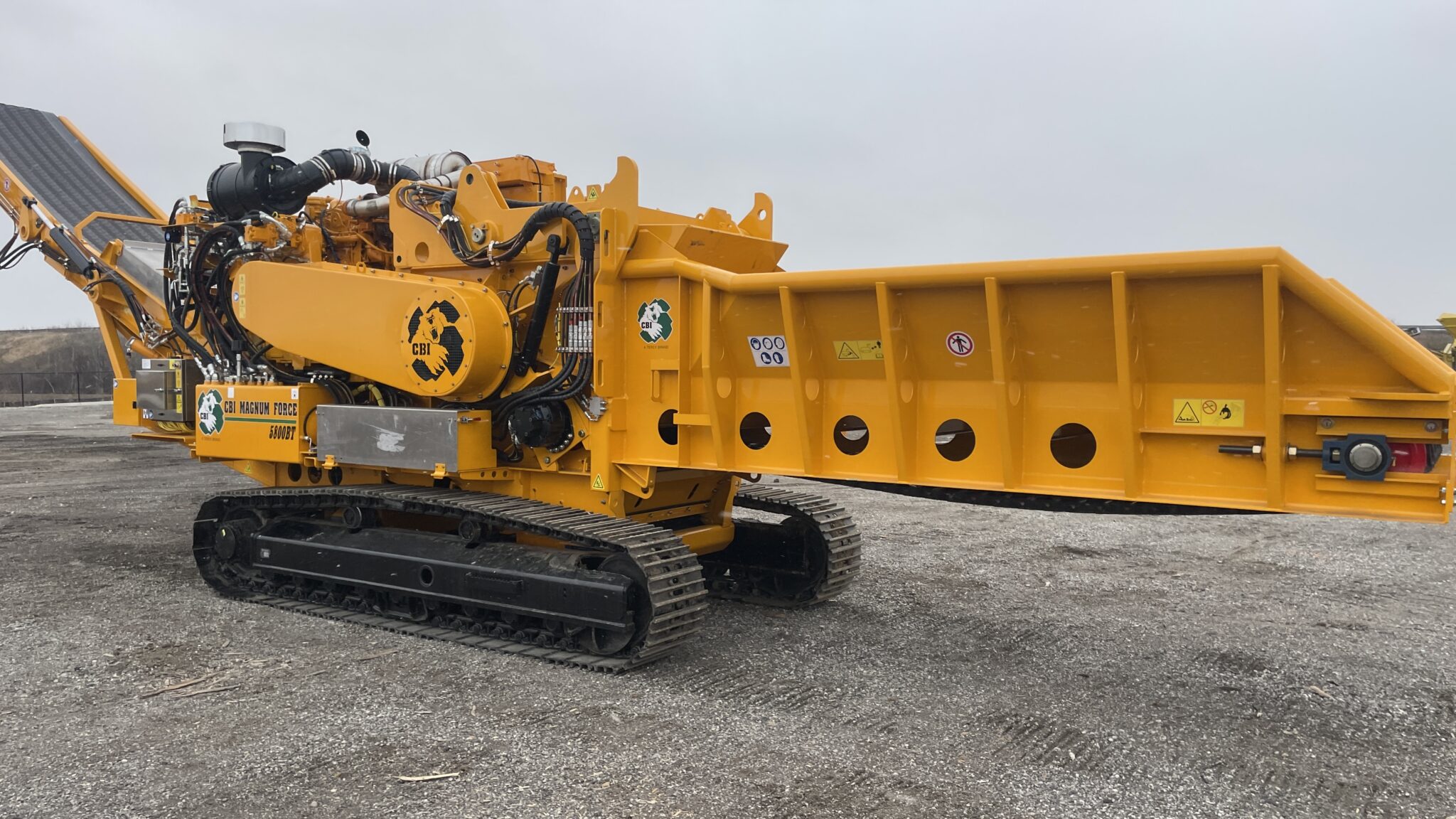

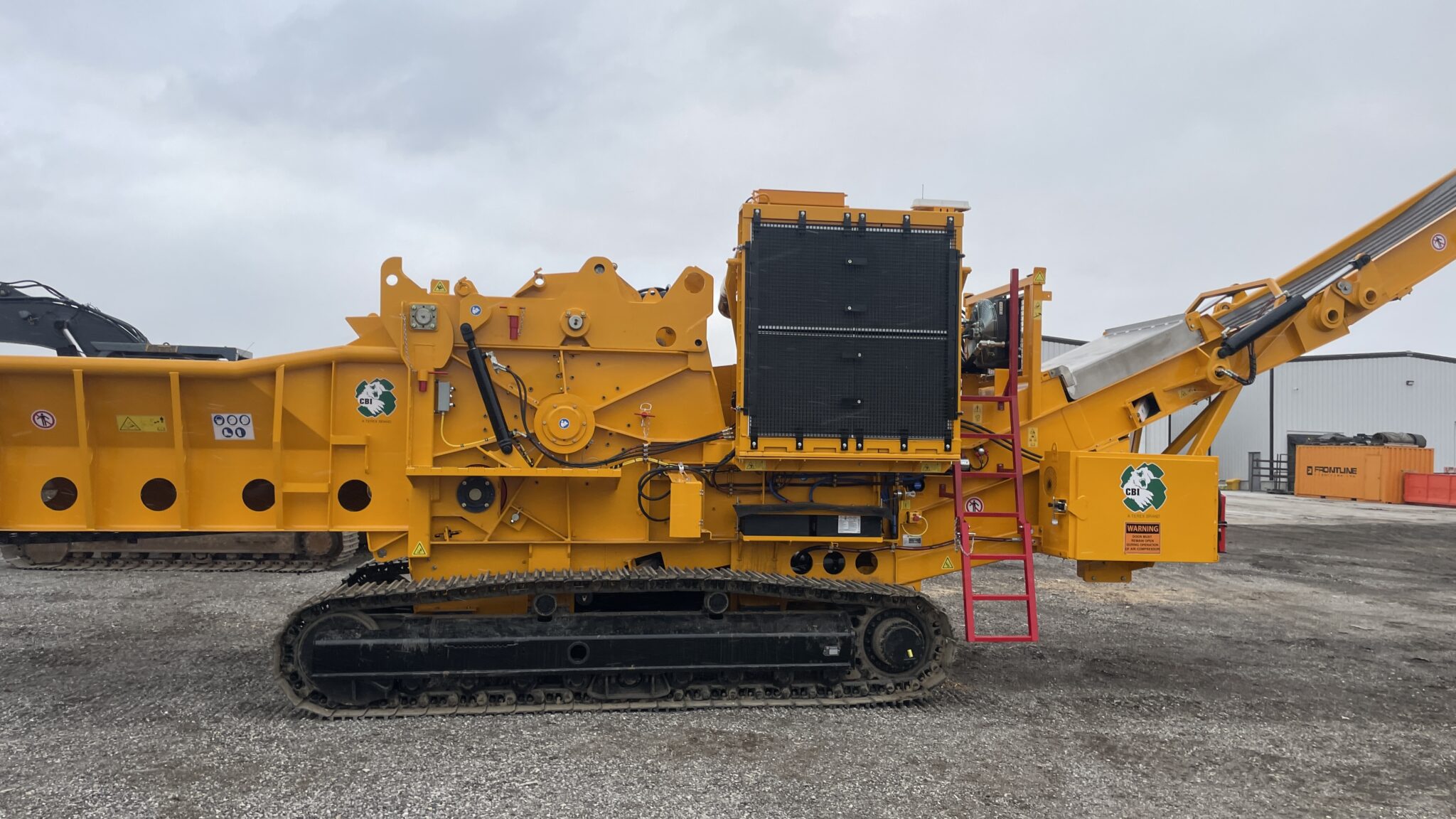

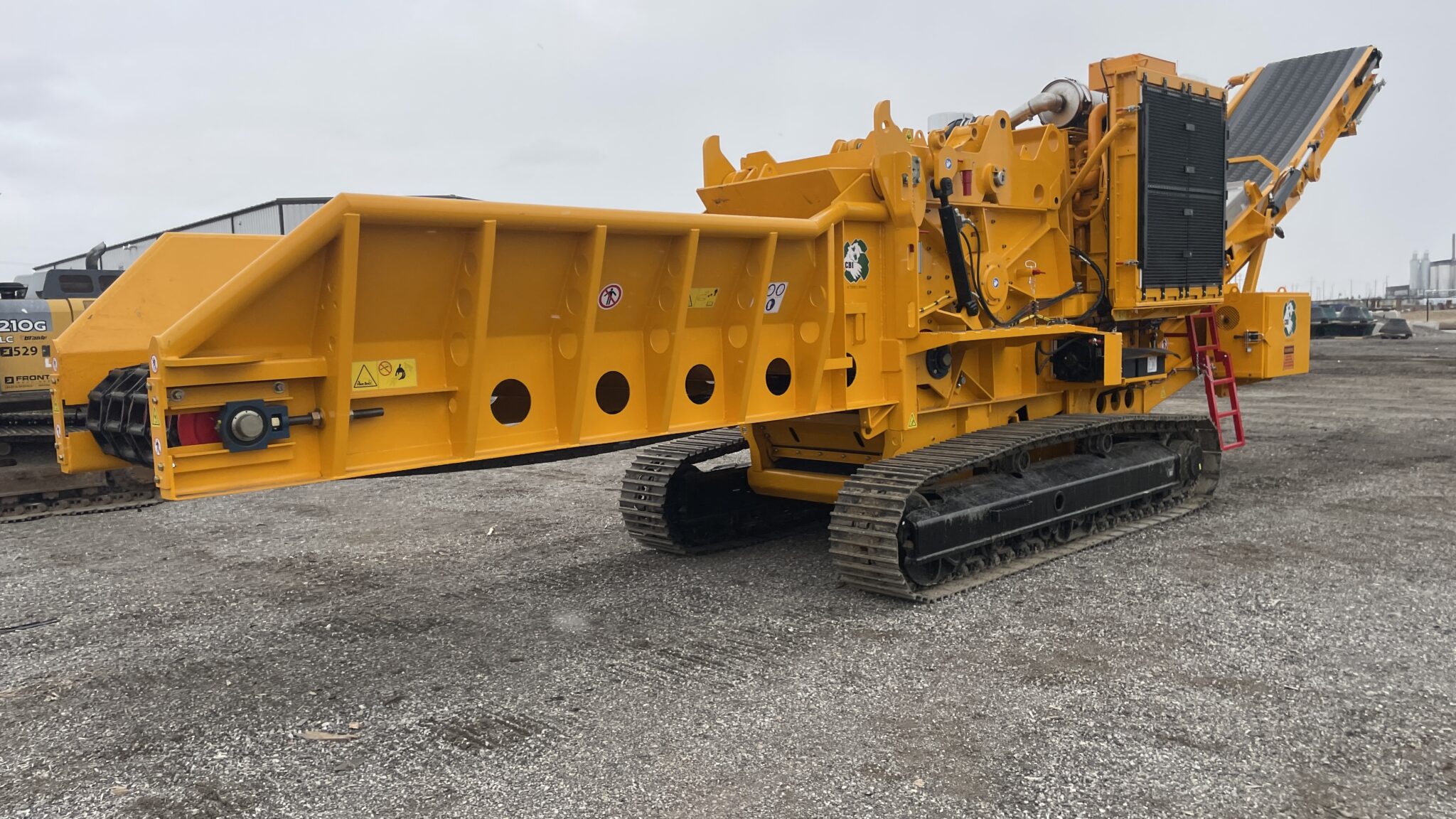

Track mounted mobile horizontal grinder for land clearing, wood debris, organic waste and C&D grinding,

This portable horizontal grinder was developed to feature the same principles of the proven CBI 6800BT Grinder but is purpose-built for contractors dealing with transportation restrictions. Like CBI’s other horizontal grinders, the 5800BT never compromises strength or performance.

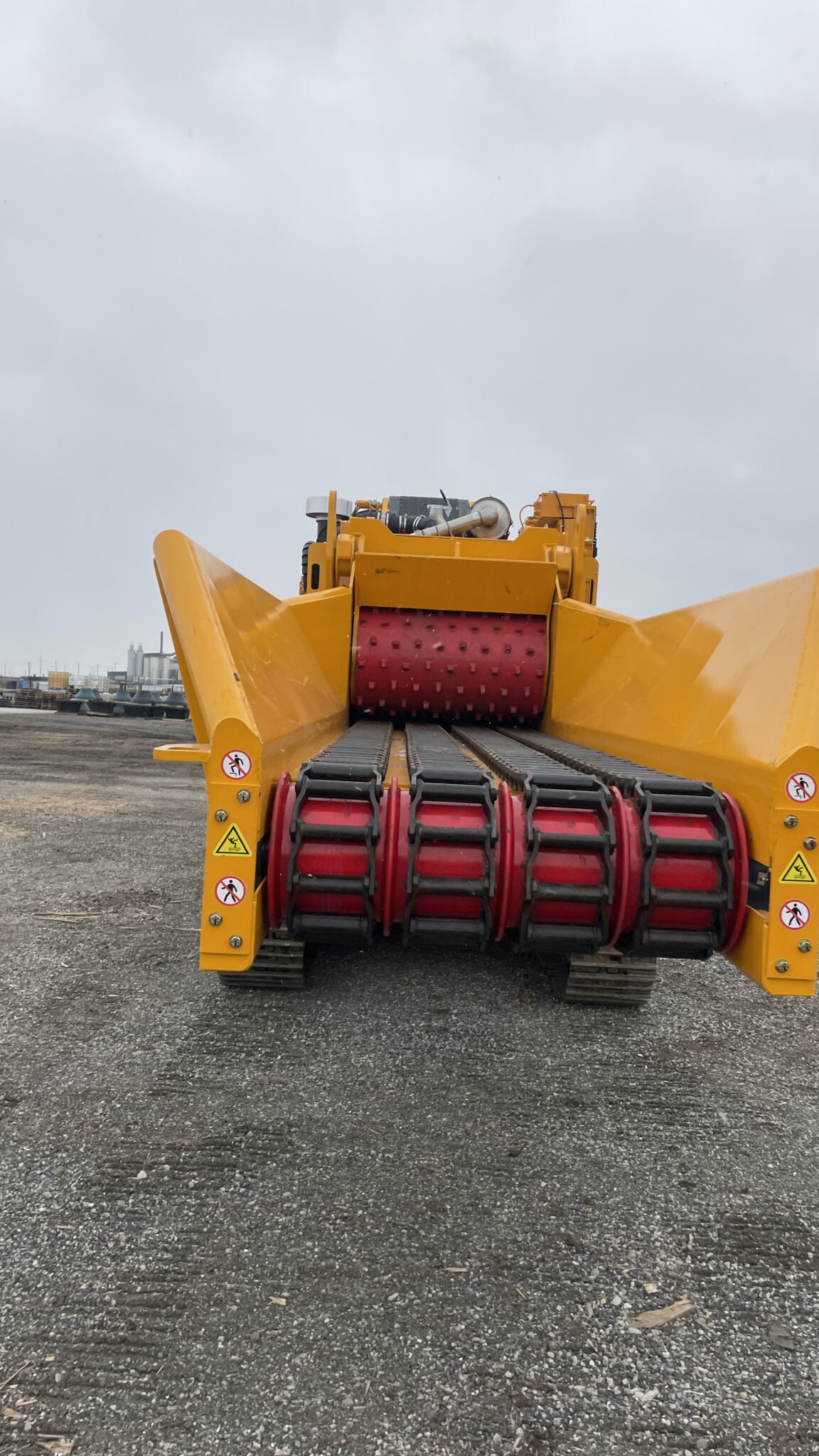

Built to reduce the customer’s total cost, replaceable 1” thick Hardox 450 wear liners fully protect the inside of the grinding chamber and simplify maintenance. Other features include a 30” diameter upper feed roller with a built-in high-torque hydraulic motor, hydraulic up and down pressure, and 20 weld-on hammers with bolt-on reversible tips. Tips are arranged in a patented offset helix pattern that cuts the full width of the rotor, drastically increasing throughput over the competition’s conventional pinned rotor design. The offset helix pattern promotes even wear across the rotor, so the customer spends more time grinding and less time changing teeth.

CBI’s Replace-A-Face™ hammer system allows operators to swap out the face independent of the rest of the hammer for quick, easy, and inexpensive repairs. Different tip widths and heights are available to change the cutting gap. The upper feed roll pivot also has replaceable wear plates. The rotor housing features the same spider bracing, rugged bearing housing, and cross members as CBI’s larger machines. All holes are line-bored to the highest tolerances, ensuring long bearing life and that parts fit for the life of the machine. The rotor adheres to CBI’s proven formulas for geometry and speed to maximize production rates while maintaining fuel economy.

Get More Info
Book a DemoFinancingRent MeTechnical Specs

Application: Construction and Demolition, Soil, Mulch and Compost, Waste and Recycling, Wood Recycling and Forestry

Manufacturer: CBI

Configuration: Mobile (Tracked)

Model: 5800BT Horizontal Grinder

Year: 2024

New/Used: New

Unit #: 972

Location: Woodstock, ON

Additional information

Application

, , ,

Configuration

Location

Manufacturer

Model

Year

2024

New/Used

Unit #

In Stock / Available to Order
