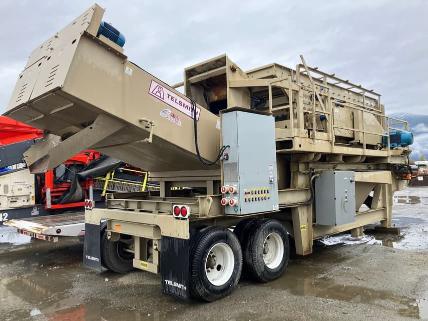

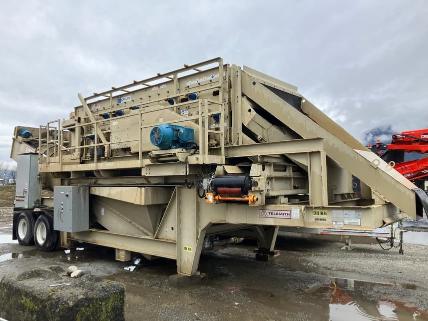

2015 Astec 18722PH Wash Plant

The Series 1800 plants offer industry-leading fine material washer with an array of configurations — choose inclined or horizontal wet single-, double- or triple-shaft screens with two or three decks and even add a blademill — all on a single chassis. Standard and custom-built skid-mounted or stationary plants are available with an unlimited number of configurations and options to meet any application.

-6’ x 16’, 3-deck horizontal wet vibrating screen
-V-belt drive assembly with 40-HP, 1200 RPM motor
-Huck-bolted assembly- 1/4” plate steel side plates
-160-mm double-roll spherical self-aligned bearings
-Triple shaft vibrating mechanism complete with keyless holdfast hub locking assembly
-Oval motion stroke pattern
-Adjustable stoke amplitude (3/8” – 5/8”)
-Adjustable stoke angle (30° – 60° in 5° increments)
-Adjustable speed via adjustable motors heave (675 – 875 RPM)
-Fully contained oil splash lubrication system
-Bolt-on tailgates, 24” feedbox and 4” discharge lips
-Steel coil springs
-Side tension draw bar screen cloth retention system (screen cloth is optional)
