Keestrack B6 Jaw Crusher

Heavy-duty quarry jaw crusher for primary crushing in aggregate production applications

Equipped with a fully automatic feed system, hydraulic adjustment, and user-friendly controls with great maintenance access and replacement of wear parts, the Keestrack B6  mobile jaw crusher is ideal for primary crushing of medium and hard applications.

The B6 Jaw Crusher is designed with a large independent 2-deck vibrating pre-screen, reducing wear and tear on the crushing chamber by removing fines from the material before entering the crusher and ultimately extending the lifespan of the machine. Low emission engine coupled with load-sensing hydraulics reduces fuel consumption by up to 25%, helping minimize the environmental impact of the operation.

Like all jaw crushers of Keestrack, the advanced patented Non-Stop System protects the crusher from uncrushable material by automatically opening the jaw to allow the obstruction to pass and resetting the C.S.S. back to its original position ensuring a smooth uninterrupted crush.

Get More Info
Book a DemoFinancingTechnical Specs
Categories: ,

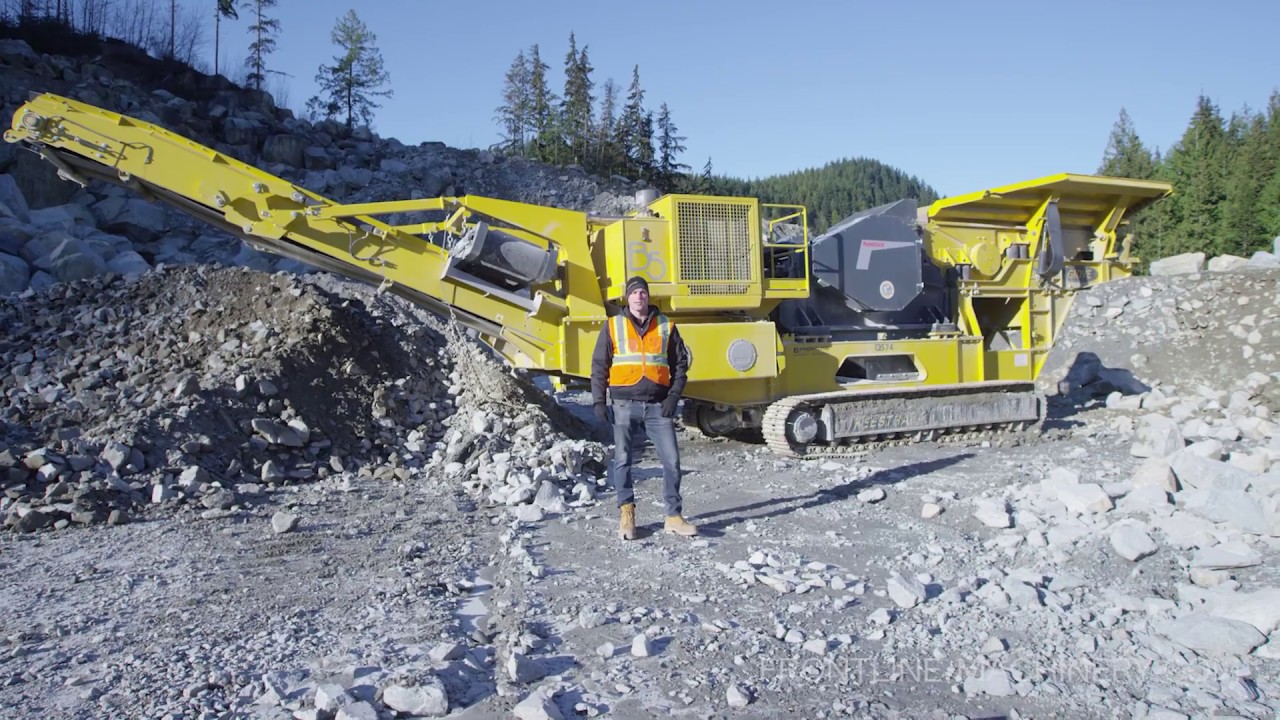

See the Keestrack B6 Jaw Crusher in action!

Take an up-close tour of the Keestrack B6 (previously known as the B5) jaw crusher to see a few of the key features which make Keestrack the ultimate choice in mobile crushing and screening equipment.



Performance Highlights




  • Independent double deck vibrating pre-screen (1,000 x 2,300 mm (3’ x 8’))
  • Feed size up to 700 mm (28″)
  • Capacity up to 420 tph
  • C.S.S (55 – 215 mm (2” – 8”))
  • Feed opening 1.150 x 800 mm (44” x 32”)
  • Intake hopper 5m3
  • Smart sequential auto start/stop from remote
  • Ability to track while producing
  • Hydraulic gap adjustment to prevent clogging
  • 2-speed track drive
  • Load sensing hydraulic system
  • High stroke of the jaw for the excellent throughput
  • HB 450 steel hopper and wear plates
  • Long pre-screen for less wear
  • Higher crushing capacities
  • User-friendly RELYTEC control panel
  • Steel hydraulic piping



Benefits




Steel hydraulic lines

Steel Hydraulic lines are used throughout the crusher. Offering many benefits including increased strength, improved safety, easier repairability and better heat distribution, these steel hydraulic lines improve the lifespan of the oils used in the crusher.

Fuel efficient

The B6 jaw crusher features load sensing hydraulics which offers upwards to 20 – 30% in fuel savings compared to traditional diesel-driven crushers. The system automatically detects where hydraulic power is needed in the machine and adjusts accordingly. Fuel savings are achieved by reducing load when it is not required.

Automatic wear recovery

The automatic jaw wear recovery system checks the set CSS of the crusher every 50 hours and readjusts it to the correct CSS. This process can also be done manually ensuring consistent quality and sized crushed end product.

Non-stop system (NSS)

The NSS (Non-stop overload safety system) is a hydraulic and electronic safety protection system that guarantees continuous production and protects the machine from uncrushable feeds. If a large unbreakable piece enters the crushing chamber, the jaw opens automatically and resets itself to the original setting.



Why Keestrack






State-of-the-art Technologies

Keestrack focuses on state-of-the-art drive technologies and sophisticated processing concepts. From the use of modern communication technology and telematics for remote plant control and maintenance management to the use of high-strength steel in the machine frames and superstructures, Keestrack never compromises on quality with uncompromising standards. Anything less than exceptional doesn’t make the grade.



Performance in every detail

Keestrack is dedicated to delivering the best-in-class for all their customers, so they design every Keestrack crusher, screener, and stacker from the ground up to be highly efficient and cost-effective. These many individual innovations together set Keestrack apart. Their promise of performance in every detail means they go the extra mile to set the standard within their sector.



Private family owned

In 1996 Kees Hoogendoorn and his wife Annet Schoenmaker started Keestrack with an ambitious vision: to build the world’s first direct feed scalper. Today, they proudly lead the way in mobile screening and crushing technologies. Their belief in the importance of family gives them the confidence to push further and try harder. They are 100% privately owned and managed by the Hoogendoorn family, with the idea of family at the heart of everything. The result gives an unshakable belief in Keestrack and their ability to succeed.

Additional information

Application

,

Configuration

Manufacturer

Model

In Stock / Available to Order
