Combined impact crusher and screener for one-machine mining and quarry operations

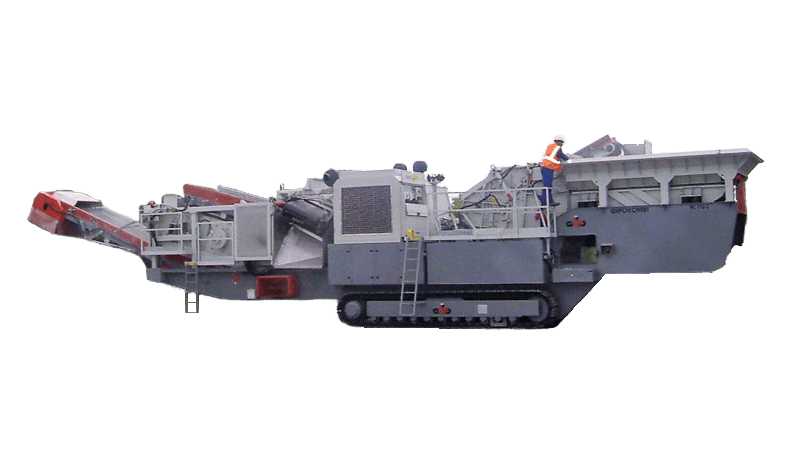

GIPOKOMBI RC 150 C/FDR Impact Crusher

  • This field is for validation purposes and should be left unchanged.

The GIPOKOMBI is the perfect combination of a mobile track mounted crusher and screener, offering a solution for almost any job. Their flexibility makes it easy to transport for those looking for a reliable and uncomplicated machine. Ideal for mining and quarry operations, the GIPOKOMBI RC 150 is equipped with a low emission engine to meet today’s stringent environmental regulations.

GIPO is a globally recognized for its expertise in soil and stone industries. This knowledge has set the foundation for machines like the Kombi RC 150 to give your project a reliable and powerful machine to create results you need for a quality production.

GIPOKOMBI C Performance Highlights

  • Feed hopper: 10 m³
  • Feed channel: 1400 x 4300 mm
  • Impact crusher inlet: 1470 x 925 (1100) mm
  • Rotor diameter: 1300 mm
  • Crusher capacity: up to 800 t/h
  • Discharge chute: 1500 x 2300 mm
  • Crusher discharge conveyor: 1600 x 10000 mm
  • 2-deck screen machine: 1800 x 6000 mm
  • Main discharge conveyor belt: 1400 x 10500 mm
  • Oversize recirculation conveyor: 800 x 8400 mm
  • Powerpack: CAT C18 ACERT / 522 kW
  • Weight: 115000 kg

GIPOKOMBI FDR Performance Highlights

  • Feed hopper: 9 m³
  • Feed channel: 1320 x 3500 mm
  • Impact crusher inlet: 1470 x 925 (1100) mm
  • Rotor diameter: 1300 mm
  • Crusher capacity: up to 800 t/h
  • Discharge chute: 1500 x 2300 mm
  • Crusher discharge conveyor: 1600 x 10000 mm
  • 2-deck screen machine: 1800 x 6000 mm
  • Main discharge conveyor belt: 1400 x 10500 mm
  • Oversize recirculation conveyor: 800 x 8900 mm
  • Powerpack: CAT C18 ACERT / 522 kW
  • Weight: 120000 kg

Key model attributes C/FDR

Capacity

Up to 800 tph

Weight

C:

115,000 kg

FDR:

120,000 kg

Hopper

C:

10 m3

FDR:

9 m3

Rotor

1,300 mm (51”)
