High production modular jaw crushing plant

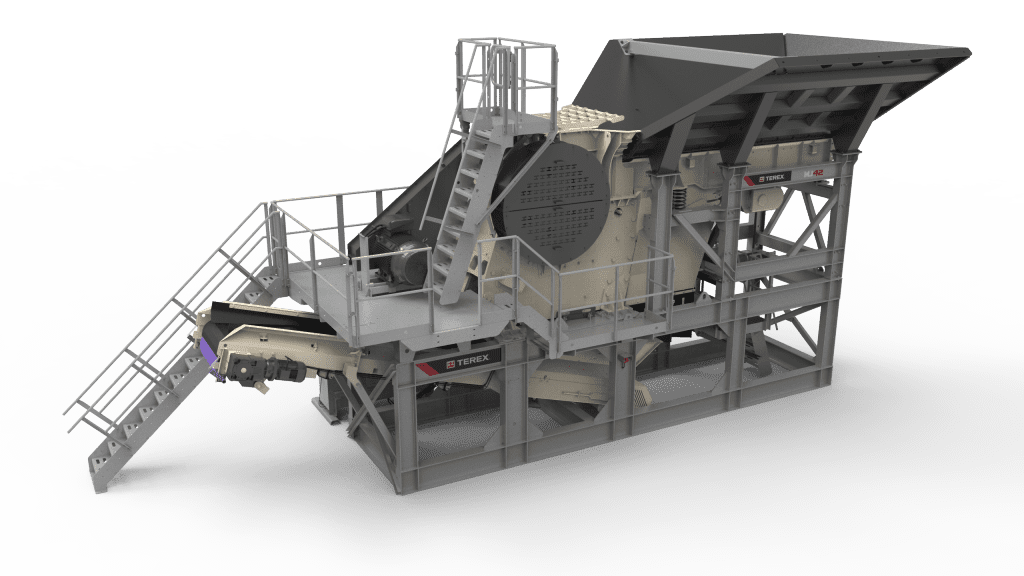

Cedarapids MJ42 Modular Jaw Crusher Plant

cedarapids MJ42 modular jaw crusher
  • This field is for validation purposes and should be left unchanged.

The Terex® MJ42 Modular Jaw Crusher features the rugged JW42 jaw for high production. Its hydraulically actuated wedge system allows closed-side settings to be made quickly and easily.

Highlights

  • 25 ton (22.6 tonne) feed hopper capacity
  • Bolts together on-site, quick setup time with basic tools
  • CE compliant structure and components
  • Extra heavy-duty I-beam frame
  • Entire module easily transports in two 40′ (12.2 m) containers
  • 40″ (1000 mm) fully skirted product conveyor with replaceable feed box
  • Maintenance access platform
  • E-stops located for easy access on both upper deck and ground
  • Observation platform
  • Weather protected user-friendly control panel
  • Pre-wired “plug and play” design, minimal on-site wiring
  • Galvanized steel structure including walkways, steps and guard rails

Key Model Attributes

Capacity

Up to 430 tph

Weight

42,500 kg

Motor size

150 hp / 110 kW
