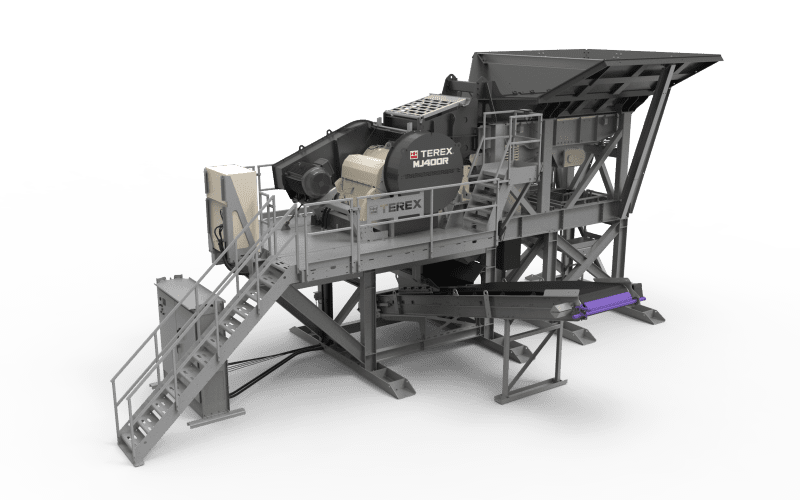

Cedarapids MJ400R Modular Jaw Crusher Plant

cedarapids MJ400R modular jaw crusher
  • This field is for validation purposes and should be left unchanged.

The MJ400R is a great addition to the Modular Product Portfolio. The key to this product is the industry leading access built into the design of this modular crusher.  It brings customers a well proven, cost effective and durable machine in a modular all-electric format with ‘no crawl maintenance access’ to the chamber.

The MJ400R has the Terex TJ2844R single toggle jaw crusher with renowned hydraulic overload protection as standard.  It has a fully galvanized steel structure including walkways, steps, guardrails and product conveyor and is CE compliant.

This product is ideal for C & D recycling applications as well as quarries and mines and integrates well with established systems or working independently.

Jaw Crusher

  • Terex TJ2844R Chamber C/W standard Super Tooth liner profile
  • 1100mm (44”) x 700mm (28”) Jaw Chamber pre mounted on sub frame assembly with motor, belts, and drive guard
  • Fabricated Main frame with bolt on bearing cartridges
  • Direct Electrically driven jaw crusher via belt system
  • Manual hydraulically assist closed side setting via shims
  • Hydraulic overload protection
  • Wedge & through bolt liner retention system on the fixed & the swing liner
  • CSS opening range – 50mm(2”) to 125mm(5”)
  • 110kW (150HP) WEG Crusher Duty motor 380 – 415 Volts 3-Phase 50Hz

Module Structure

  • Bolt-together on-site, quick setup time with basic tools
  • One-piece crusher feed chute with plug welded AR liners and chamber guard
  • Fines bypass “tool less” 2-position chute discharges to product conveyor or optional third party fines conveyor
  • Galvanized and painted steel structure c/w walkways, steps, platforms, and guard rails\
  • Pre-wired “plug and play” design, minimal onsite wiring
  • Heavy Duty Ground Mounted Electrical Control Panel and Plant wiring giving Manual/ Automatic Control of Jaw Module operation
  • Emergency Stop Stations
  • Observation Platform
  • CE compliant module structure and components

Key Model Attributes

Capacity

Up to 255 tph

Weight

39,635 kg

Motor size

150 hp / 110 kW
