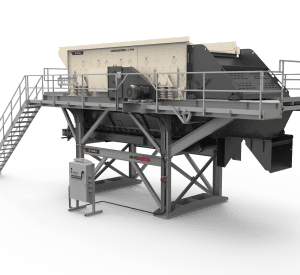

Cedarapids MHS6203 Modular Horizontal Screener

Check out the Cedarapids MHS6203 Modular Horizontal Screener
in action!

Standard Features

Module Structure

• Bolts together on site, quick set-up time with basic tools
• Minimal on-site wiring
• Robust weather-protected control panel with user-friendly controls
• Galvanized steel structure including walkways, stairs and guard rails
• Extra-heavy-duty I-beam frame with rigid diagonal truss construction
• Integrated rolling chute mechanism and integrated trouser leg chutes
• CE compliant module structure and components
• Systematically packed in shipping containers for quick site setup and easy transport

Blending Chutes

• 4-section (25%) blending gate system for all decks
• 2-section (50%) blending gates for bottom deck
• Deck product combinations: top-center; center-bottom; bottom-fines; center up to top; bottom up to center
• Heavy-duty AR 400 liners on impact surfaces
• Flop gates are made from AR 400 steel

Cedarapids LJ-TSV Horizontal Screen

• 8’ x 20’ (2438mm x 6096mm) 3-deck LJ-TSV8203-38 horizontal screen with El-JayTM oval stroke design
• Three-shaft vibrator mechanism with adjustable stroke angle, stroke length, and speed
• 25% thicker 5/16” (8 mm) grade 50 high strength steel side plates
• Heavy-duty fully braced single crown steel deck construction
• Exclusive patented and patent-pending features for durability and easy maintenance:
• Low maintenance vibration damper system
• “Flow-through” bearing lubrication
• Baffle splash lubrication system
• Double O-ring sealed for life vibrator construction
• Spherical washer design eliminates sidewall welds
• Huck-bolted screen box construction (no welds)
• Extended life coil spring suspension
• Replaceable bolt-on spring guides
• Gland type non-wearing shaft seal
• Tool-less oil level sight glasses

Underscreen Conveyor

• 60” (1524mm) fully skirted underscreen fines conveyor
• 10 hp (7.5kW) standard drive electric motor and gearbox
• Vulcanized 2-ply belt and easy access belt take-ups
• High performance belt wiper
• CEMA 20o troughing rolls
• Power Panel
• Electric power panel for screen and on-plant collection conveyor

Optional equipment

• Skid mounting feet for easy setup at site without concrete pads (full length skid bases also available)
• Electrical switchgear panel
• Off module conveyor starter kit for off-plant feed conveyor and four off-plant product conveyors
