High production vertical shaft impact (VSI) crusher

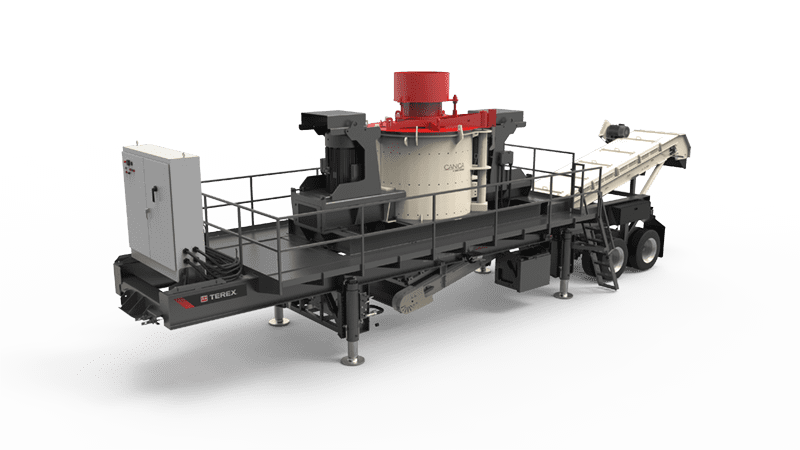

Cedarapids CRV2050 Portable Impact Crusher Plant (VSI)

Cedarapids CRV2050 Impact Crushing Plant VSI
  • This field is for validation purposes and should be left unchanged.

The CRV2050 portable VSI features the world-renowned Canica 2050 Vertical Shaft Impactor, available in a number of chamber configurations. This highly mobile all-electric plant comes with our latest CCM automation system and is available in both single or dual drive.

Canica CRV Series Standard Features

Crusher

  • Heavy-duty bearing pedestal
  • Astralloy main shaft
  • Cast chrome pedestal protection
  • Patented “Hydralid” hydraulic lid lifter
  • Externally adjustable feed tube system
  • Cast feed tube
  • Cast lid and mainframe liners
  • Heavy-duty motor mounts with motor covers and adjustable take-ups Vibration shut-off switch
  • Belt guards
  • Heavy-duty open shoe table
  • Cast lined flywheel
  • Drive belts and sheaves
  • Patented vaulted anvil system
  • Inspection door with safety lock

Modular Oil System

  • 35 gallon (132 liter) reservoir
  • Positive displacement oil pump
  • Low pressure relief valve and high pressure lid lifter valve
  • Low pressure shut-down switch
  • Oil heater
  • Oil sight gauge, oil temperature gauge, and lube oil pressure gauge

Ancillary Electrical Control Cabinet

  • Tachometer/Hour meter
  • 2 HP (1.5 kW) lubrication system starter
  • 15 HP (11 kW) conveyor starter
  • Oil system heater starter
  • Contains termination points for ALL safety shut-off switches Warning strobe

Standard Safety Features

  • Open lid safety lock
  • Shut-off switches detect: Low oil pressure, Excessive vibration (vibration switch), Open lid

Crusher Optional Equipment

  • Two-piece crusher design (removable tub section)
  • Pinion gear drive assembly
  • 4 and 5-port autogenous rotors
  • 4 and 5-port anvil ring rotors
  • Rockbox
  • Ceramic wear parts
  • Tungsten carbide wear parts
  • Portable chassis mount
  • Stationary support stand with walkways and ladders Diesel power
  • Variable frequency drives
  • Soft starts

Plant Optional Equipment

  • 300 hp (single 300) to 700 hp (dual 350)
  • CCM automated switchgear panel with crusher soft start
  • Tether control, radio remote, inter-plant communication
  • Variable frequency crusher drive in place of soft start
  • Metal detector
  • Hydraulic leveling or run-on jacks
  • Dust suppression & pump
  • Oversize tires

Key Model Attributes

Capacity

Up to 400 tph

Weight

32,479 kg

# of Axles

2

Max Feed Size

102 mm (4")
