High production vertical shaft impact (VSI) crusher

Cedarapids CRV2000 Portable Impact Crusher Plant (VSI)

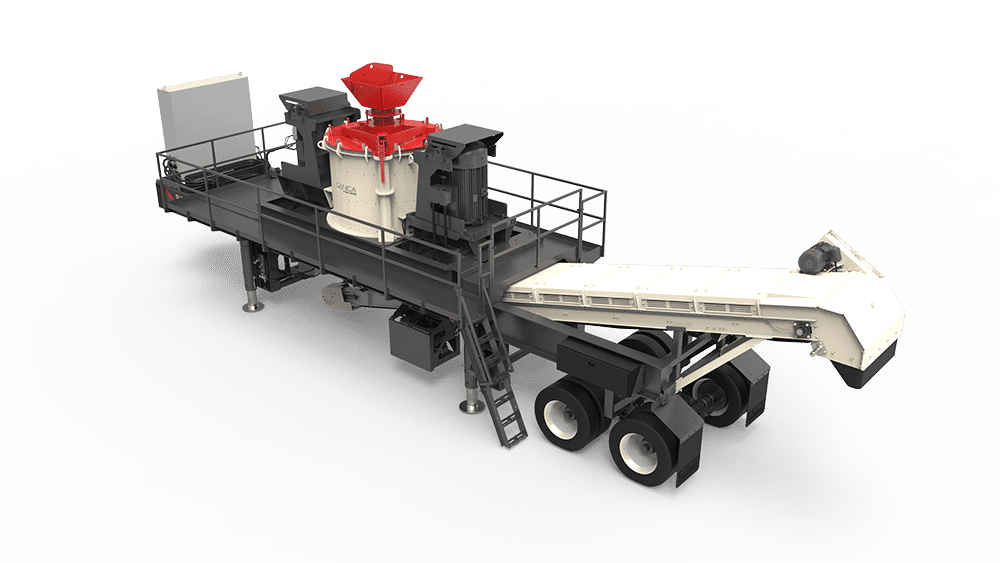

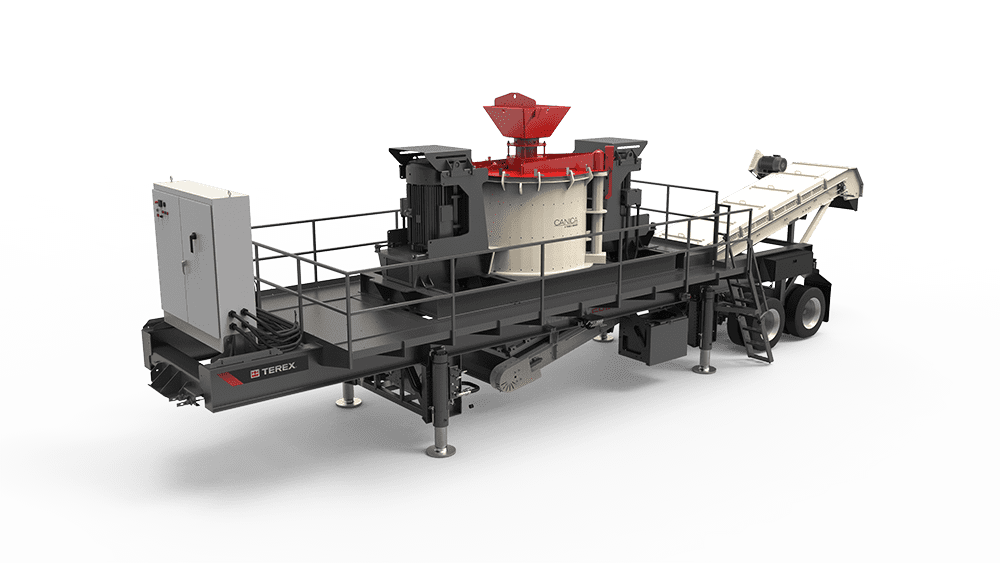

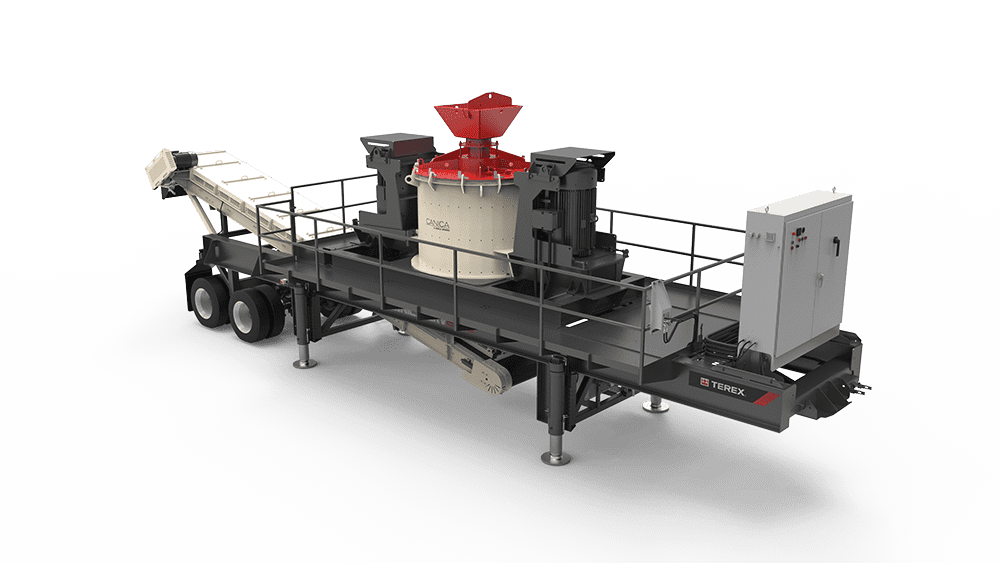

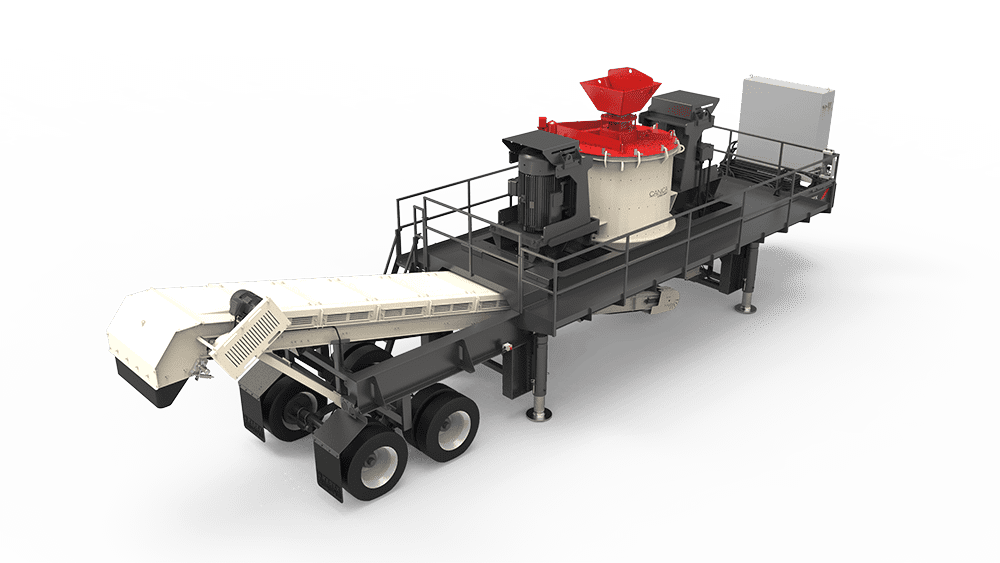

Cedarapids CRV2000 VSI crushing plant
  • This field is for validation purposes and should be left unchanged.

The CRV2000 portable VSI features the world renowned Canica 2000 Vertical Shaft Impactor, available in a number of chamber configurations. This highly mobile all electric plant comes with our latest CCM automation system and is available in both single or dual drive.

Canica CRV Series Standard Features


  • Heavy-duty bearing pedestal
  • Astralloy main shaft
  • Cast chrome pedestal protection
  • Patented “Hydralid” hydraulic lid lifter
  • Externally adjustable feed tube system
  • Cast feed tube
  • Cast lid and mainframe liners
  • Heavy-duty motor mounts with motor covers and adjustable take-ups Vibration shut-off switch
  • Belt guards
  • Heavy-duty open shoe table
  • Cast lined flywheel
  • Drive belts and sheaves
  • Patented vaulted anvil system
  • Inspection door with safety lock

Modular Oil System

  • 35 gallon (132 liter) reservoir
  • Positive displacement oil pump
  • Low pressure relief valve and high pressure lid lifter valve
  • Low pressure shut-down switch
  • Oil heater
  • Oil sight gauge, oil temperature gauge, and lube oil pressure gauge

Ancillary Electrical Control Cabinet

  • Tachometer/Hour meter
  • 2 HP (1.5 kW) lubrication system starter
  • 15 HP (11 kW) conveyor starter
  • Oil system heater starter
  • Contains termination points for ALL safety shut-off switches Warning strobe

Standard Safety Features

  • Open lid safety lock
  • Shut-off switches detect: Low oil pressure, Excessive vibration (vibration switch), Open lid

Crusher Optional Equipment

  • Two-piece crusher design (removable tub section)
  • Pinion gear drive assembly
  • 4 and 5-port autogenous rotors
  • 4 and 5-port anvil ring rotors
  • Rockbox
  • Ceramic wear parts
  • Tungsten carbide wear parts
  • Portable chassis mount
  • Stationary support stand with walkways and ladders Diesel power
  • Variable frequency drives
  • Soft starts

Plant Optional Equipment

  • 300 hp (single 300) to 700 hp (dual 350)
  • CCM automated switchgear panel with crusher soft start
  • Tether control, radio remote, inter-plant communication
  • Variable frequency crusher drive in place of soft start
  • Metal detector
  • Hydraulic leveling or run-on jacks
  • Dust suppression & pump
  • Oversize tires

Key Model Attributes


Up to 300 tph


31,889 kg

# of Axles


Max Feed Size

102 mm (4")
