High production horizontal shaft impact (HSI) crusher

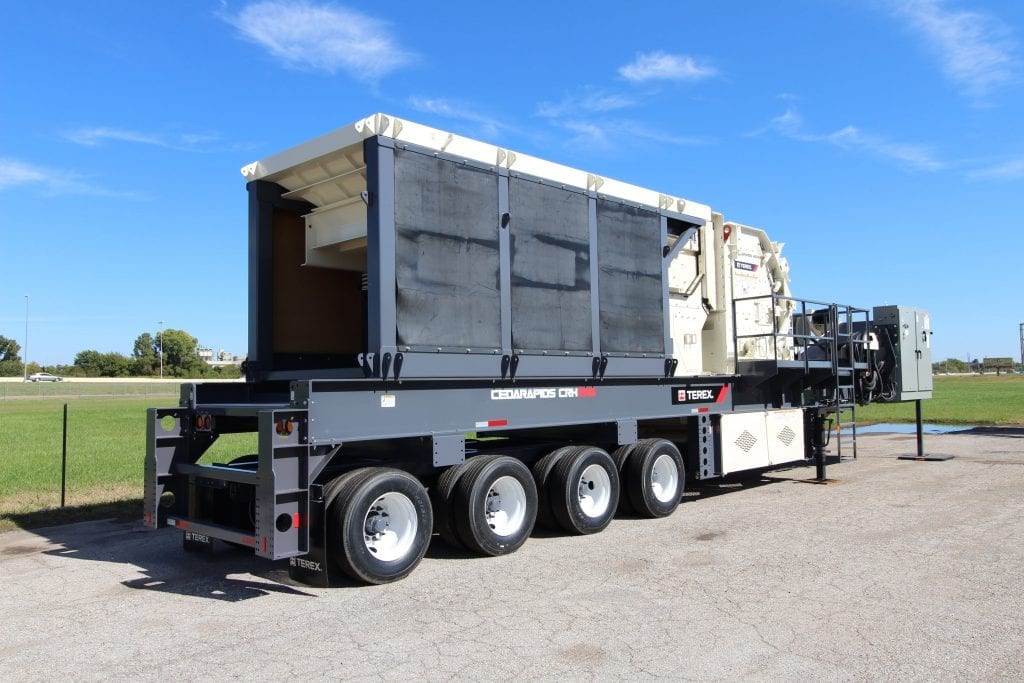

Cedarapids CRH1316R Portable Impact Crusher Plant (HSI)

Cedarapids 1316 HSI crushing plant
  • This field is for validation purposes and should be left unchanged.

The Cedarapids® CRH1313R delivers big production and has the versatility to handle rock crushing, concrete recycling, and asphalt recycling. The highly mobile plant is a complete stand-alone closed-circuit unit with three product capability. The plant features a high production Cedarapids IP1313 impactor with a 3 or 4 bar 50” (1270 mm) rotor powered by a Tier 4, 450 hp (335 kW) diesel engine, direct drive to crusher, and 200 hp (150 kW) generator. Uptime is maximized with a heavy-duty undercrusher pan feeder that protects the conveyor belt from damage by absorbing the high velocity discharge from the crusher. More capacity is possible because of the 5’x16′ (1515 x 4875mm) patent-pending dual-slope 2-deck screen which handles heavier loads. In addition, the capability to return both screen deck products to the crusher maximizes production. A rugged 48″ x 16′ (1220 x 4875 mm) high-stroke Cedarapids “Advantage” feeder with 60″ (1525 mm) grizzly bar or optional stepped tine style grizzly section feeds the impactor. The new CRH1313R portable impactor/screen plant is simple to operate, quick to set up, and easy to transport.

Standard Features

  • Tier 4 Diesel Engine 450 hp (335kW)
  • Coupled to crusher and generator with hydraulic clutch
  • 200 hp (150kW) generator and removable electrical panel with controls for all on-plant conveyors and vibratory equipment
  • Panel includes controls for two 25 hp (19 kW) off-plant conveyors (includes plugs and receptacles)
  • Vibrating grizzly feeder 48” x 16’ (1219 x 4877 mm); 25 hp (19 kW)
  • Straight 5’ (1524 mm) long bolt-in adjustable grizzly bars
  • 1/2” (13 mm) AR400 replaceable bolt-on side and floor liners
  • 5/8” (16 mm) AR400 hopper
  • Bypass chute diverts grizzly fines to undercrusher pan feeder
  • Wireless remote control for feeder with back up remote (on-off speed control)
  • Removable feeder module
  • Screen, conveyors and magnet option move hydraulically into and out of transport position
  • Triple axle suspension with 295/75 R22.5 tires
  • Inclined screen 5’ x 16’ (1524 mm x 4877 mm) two deck, 15 hp (11kW)
  • Steeper top deck for improved scalping performance
  • 17° top deck and 15° bottom deck
  • Both decks can recirculate to crusher or discharge off plant
  • 42” (1067 mm) fines conveyor 7.5 hp (5.6 kW)
  • 48” (1219 mm) screen feed conveyor, 20 hp (15 kW)
  • Two 24” (610 mm) reversible cross conveyors 5 hp (3.7 kW)
  • 24” (610 mm) return conveyor 10 hp (7.5 kW)
  • All conveyors include vulcanized 3 ply belts, CEMA C Class rollers, rubber disc return rolls and side guide rolls
  • 300 gallon (1135 liter) fuel tank allows over 10 hours of run-time
  • Four hydraulic leveling jacks with adjustable rear drop down support legs
  • Lockable 4’ (1219 mm) long side mounted storage box

Optional Equipment

  • All electrical plant 300 hp (225 kW) crusher motor and drive
  • Tier 3 diesel engine (in place of Tier 4F engine)
  • Undercrusher 36” x 96” (914 x 2438 mm) high stroke pan feeder
  • Collects high impact crusher discharge and grizzly fines, reducing conveyor maintenance
  • Dual 3 hp (2.3kW) motors provide high energy feeder motion
  • Self-cleaning permanent magnet
  • Self-cleaning eltro magnet with panel enclosed rectifier circuit
  • Hydraulic run-on jacks
  • Two 32” (813 mm) stepped tapered cantilever tine grizzly sections
  • Hydraulic lift system to remove feeder module from plant
  • Hopper side extensions
  • Removable side bulkheads
  • 4 bar crusher rotor
  • Crusher jib crane
  • Screen wire cloth
  • Screen wedge style clamp bolts
  • Quad axle suspension
  • Oversize 315/80 R22.5 tires

Key Model Attributes


Up to 455 tph


54,910 kg

# of Axles


Motor Horsepower

450 hp
