High production horizontal shaft impact (HSI) crusher
Cedarapids CRH1113R Portable Impact Crusher Plant (HSI)
https://frontline-machinery.com/our-equipment/cedarapids-crh1113r-portable-impact-crusher/
COMING SOON

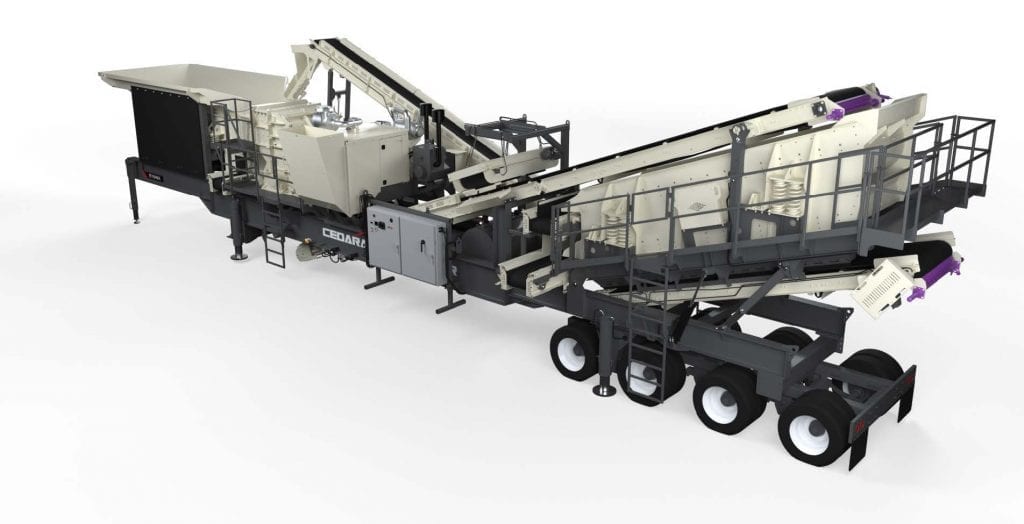

The CRH1113R Portable Closed Circuit Impactor/Screen Plant features the TI4250 impact crusher and a 6×16 2-deck inclined screen. The crusher is hydraulic clutch driven direct from a 450hp Scania diesel. All other components are electric driven from the 150kw generator. With its large screen, wide conveyors, and low maintenance electric driven components, this is a high production, high value plant.
Standard Features
- TI4250 impact crusher
- 6×16 2-deck screen
- 450HP T4F Scania Diesel with hydraulic clutch crusher/generator drive
- 150kw generator
- 48” x 18’ vibrating grizzly feeder with 6’ stepped 2-deck grizzly
- 24” reversible conveyors can feed both screen decks to return conveyor
- Gas powered hydraulic leveling jacks & screen lift
- Removable CCM automatic switchgear panel
- Travel: 11’-11” wide, 13’-6” tall, 4-axle suspension
Optional Equipment
- Off-plant starters & radio remote
- Screen platforms & ladder
- Dual pinned hydraulic run-on jacks
- Economical self-cleaning cross belt permanent magnet mid plant
- Rolling grizzly reject conveyor with 6′ discharge
- Various grizzly options for bar spacing, punch plate & 2nd deck wire
- All electric (no diesel)
Key Model Attributes

Capacity
Up to 360 tph

# of Axles
4

Motor Horsepower
450 hp

Screen Deck
6' x 16'
Resources
-
Download Spec
Download -
Who is Cedarapids?
Learn More -
