New equipment for sale

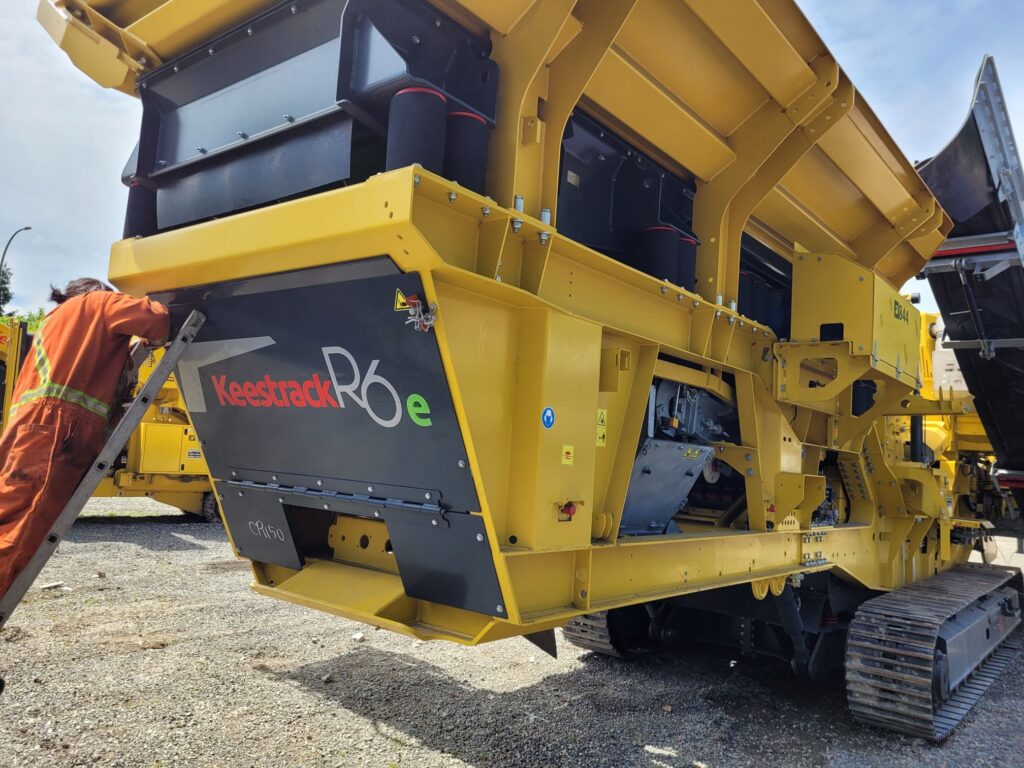

2022 Keestrack R6 Impact Crusher (#851)

Keestrack R6 Impact Crushing Plant

Unrivalled in performance, the Keestrack R6 mobile impact crusher is ideal for high-production applications, including primary and secondary crushing or high contaminated applications found in concrete and asphalt recycling.

It is equipped with one of the largest and most heavy-duty rotors in the industry and designed with an industry-leading 4’ x 10’ double deck prescreen, a swivelling oversize return/stockpile conveyor and an optional 5’ x 15’ double deck afters screen meaning operators can produce 3 fractions within an open circuit and 2 within a closed circuit application.

• Up to 500 tph
• Long, independent 2-deck pre-screen ( 1,250 mm x 3,100 (4’ x 10’))
• Higher crushing capacities and less wear
• Inlet opening (970 x 1,300 mm (38” x 51”))
• Robust HB 450 rotor (1,250 x 1,276 mm (49” x 50”)
• 7m3 hopper
• 2 deck after screen (1,500 x 4,500 mm (5’ x 15’)), removable with standing legs
• Swiveling oversize return conveyor/stockpile conveyor
• Patented tilting chassis
• Load sensing hydraulic system reduces fuel by 25%
• 2 speed track drive
• HB 450 steel hopper
• HB 500 wear plates
• Easy one-piece transport
• Hydraulic height adjustable magnet
• User-friendly RELYTEC control panel
• Patented tilting frame
• Steel hydraulic piping
