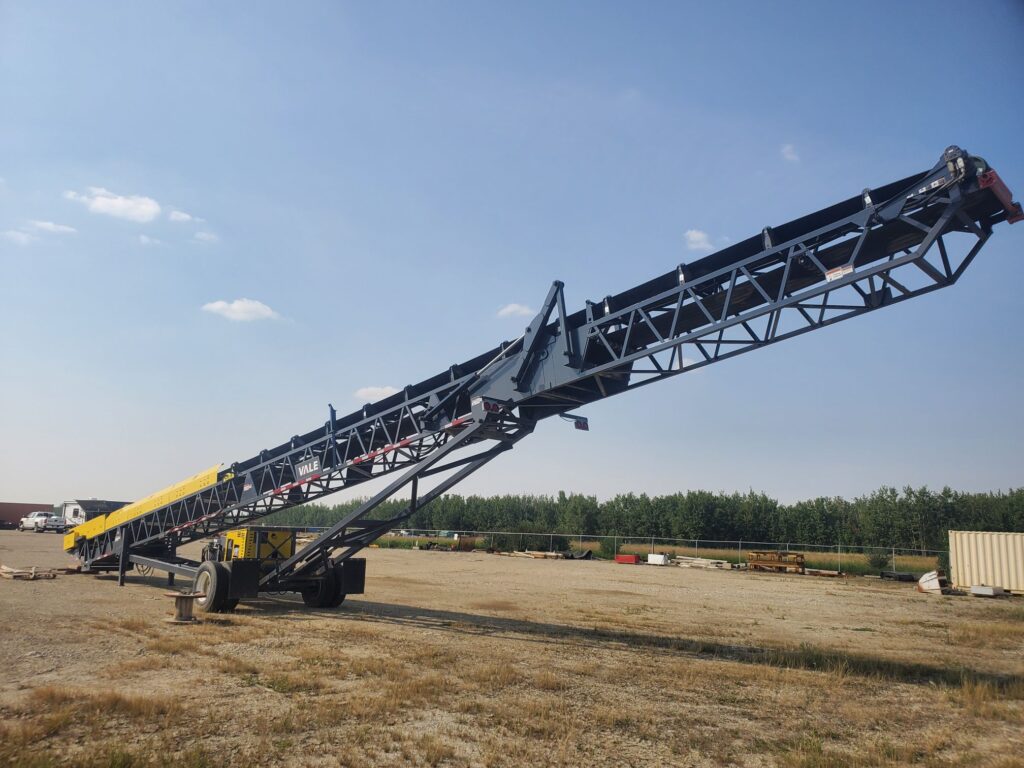

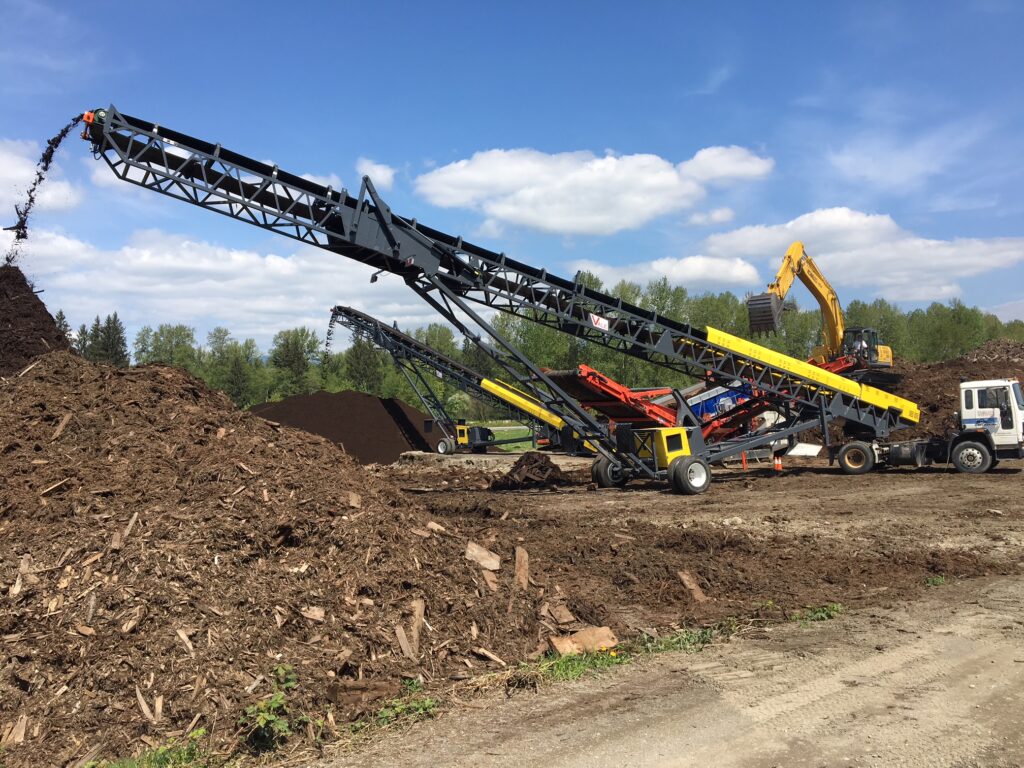

2021 Vale 3680S-DH22 Radial Stacking Conveyor

CAPACITY

  • 22 degree max incline rated up to 500 tph
  • 36″ belt x 80′, 350 fpm belt speed

POWER UNIT

  • Designed with a Kubota 50 HP V2243-CR-E4B Tier 4 engine power unit
  • Flywheel hydraulic pump, 2.0 cu in, w/ reservoir with filter and oil cooler
  • Engine control panel and throttle, 12V battery start w/ cutoff switch
  • 36-gallon diesel fuel tank capacity
  • Lockable, guarded and skid-mounted unit

CONVEYOR

  • Belt 36″ 330-3 ply 3/16×1/16 DO, vulcanized
  • 12×38″ head drum pulley, 1045-215 shaft, SCM 215 bearings
  • 10×38″ tail wing pulley, 1045-207 shaft, SCM 207 bearings, screw take-up, guarded
  • Hydraulic motor drive
    • LSHT hydraulic motor, 34.9 cu in, rigid coupling and torque arm connection
  • CEMA B 4″ trough (20 degree and 35 degree), and rubber disc idlers
    • 1″-6″ load spacing, 4′ trough spacing, 10′ return spacing
  • 5.5′ long skirt board with adjustable rubber skirting, guarded
  • Prepared location for radial hopper, bolt-in

CONVEYOR STRUCTURE

  • 30″ deep lattice truss
  • 3″ x 23″ 1/4″ angle cords, lattice framework, reinforced in high stress areas
  • Hydraulic-powered top fold with transport supports

UNDERCARRIAGE

  • Hydraulic powered telescoping lift, safety pin lock
  • Independent telescoping axles with swivel wheel boxes, 10′-6″ transport width
  • Ballasted tail end and pivot plate

HIGHWAY TRANSPORT

  • Dual 11R22.5 tires
  • Air brakes, signal lights, reflective tape, mud flaps
  • 5th wheel pin and Pintle tow rig

Urethane Coating graphite grey with safety yellow
